RIG Series

Cost-effective 16:9 Indoor Permanent Installation

Pixel Pitch: 1.5mm, 1.8mm, 2mm, 4mm



Based on cabinet size 640*480mm, it becomes easy for RIG series to make a LED screen in golden ratio as 2K, 4K or 8K, which makes it popularly used in hotel, shopping mall or broadcasting room etc. Die-casting aluminum materials, well-known brand PWM IC makes RIG series to achieve seamless splicing, 3840Hz high refresh rate and 16 bits gray scale, which turn the LED screen into a vivid showing effect for all the animations.



Features:

1. Cabinet dimensions in 960*480, 640*480mm

2. FHD, 2K, 4K and 8K available

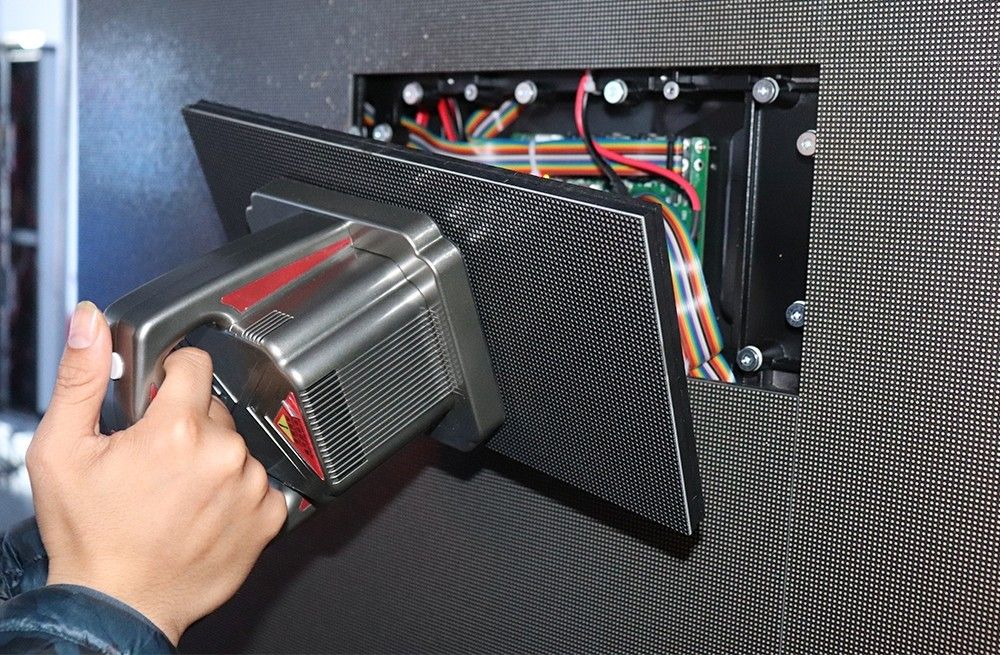

3. 100% front service

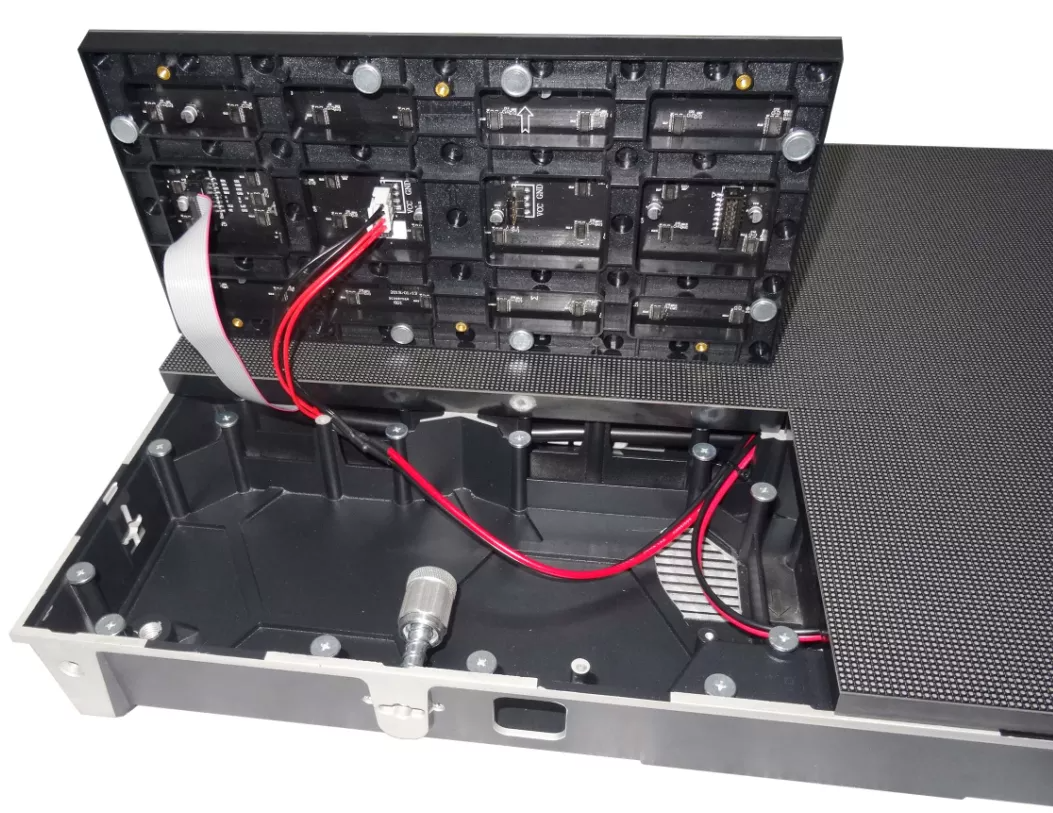

4. Die-casting Aluminum design

5. High refresh rate, high gray scale

6. Easy installation, easy assembly and disassembly

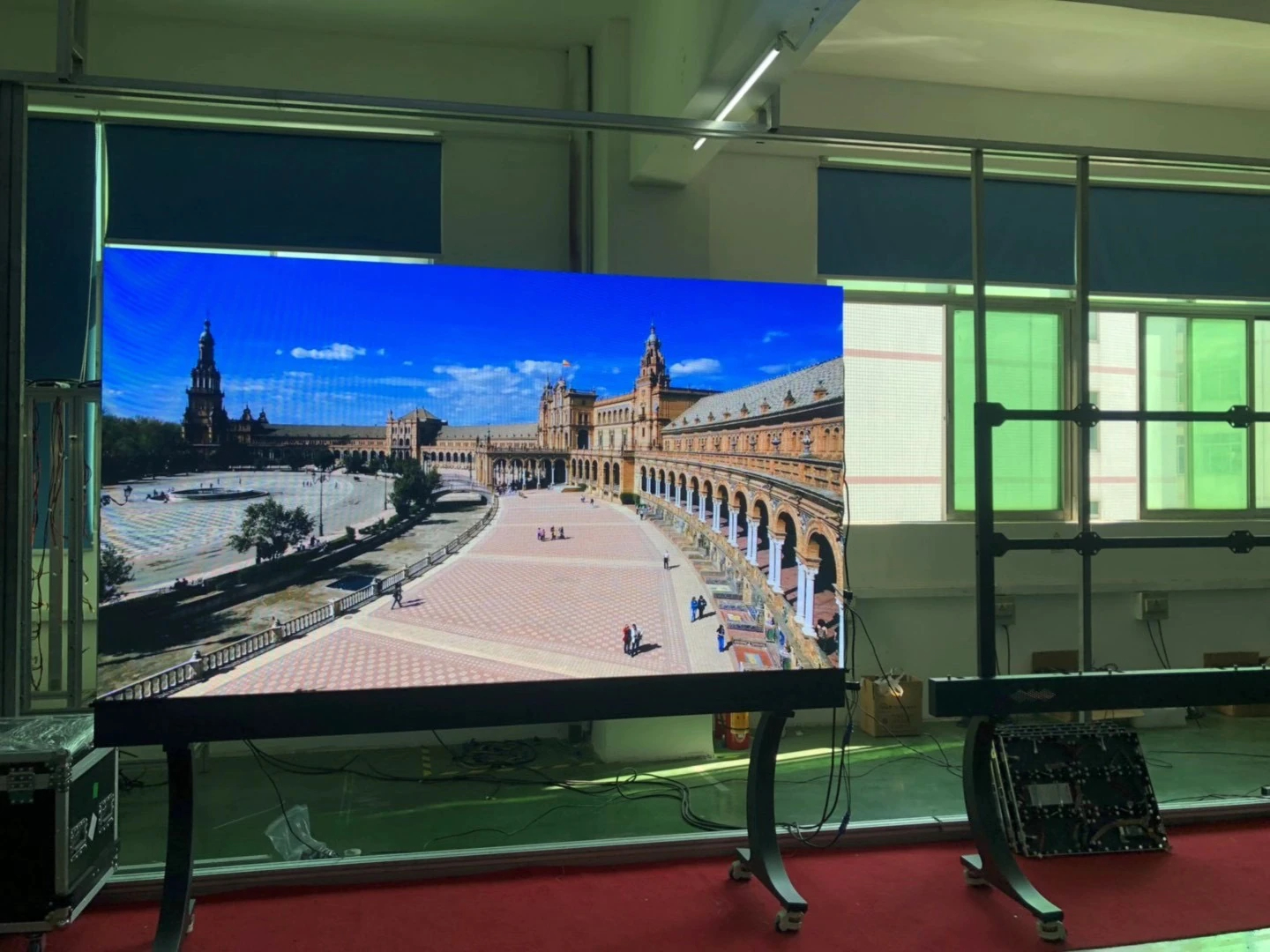

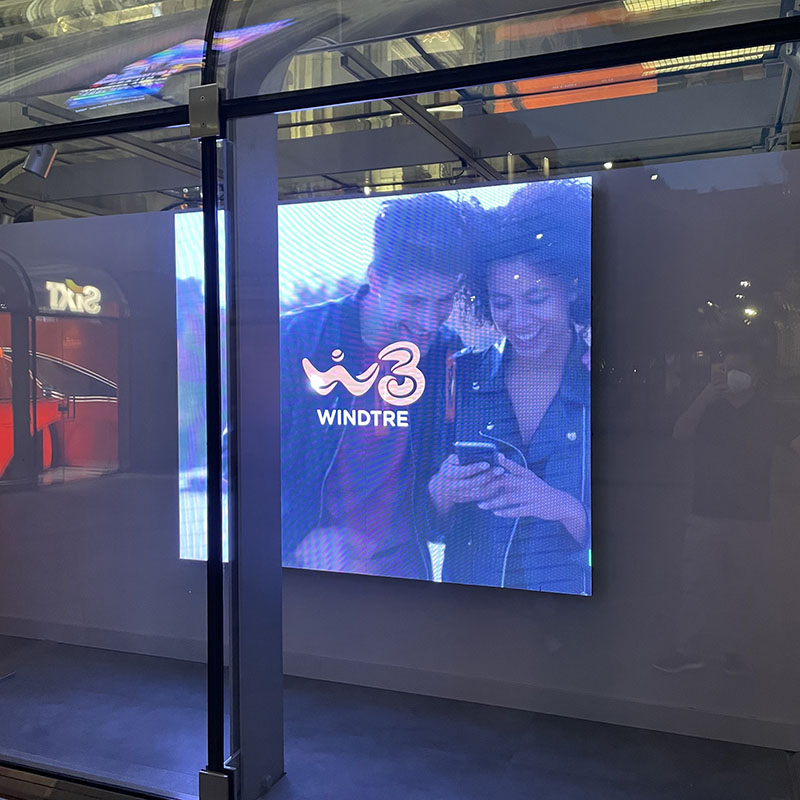

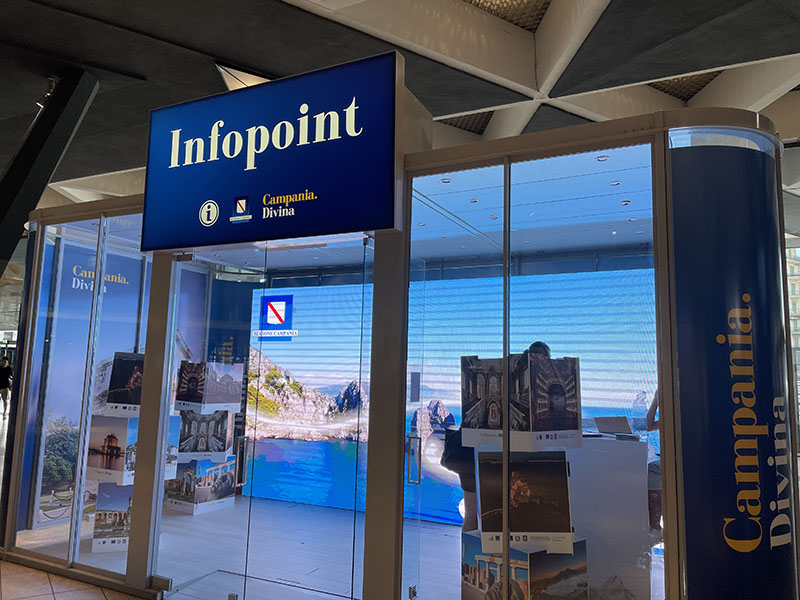

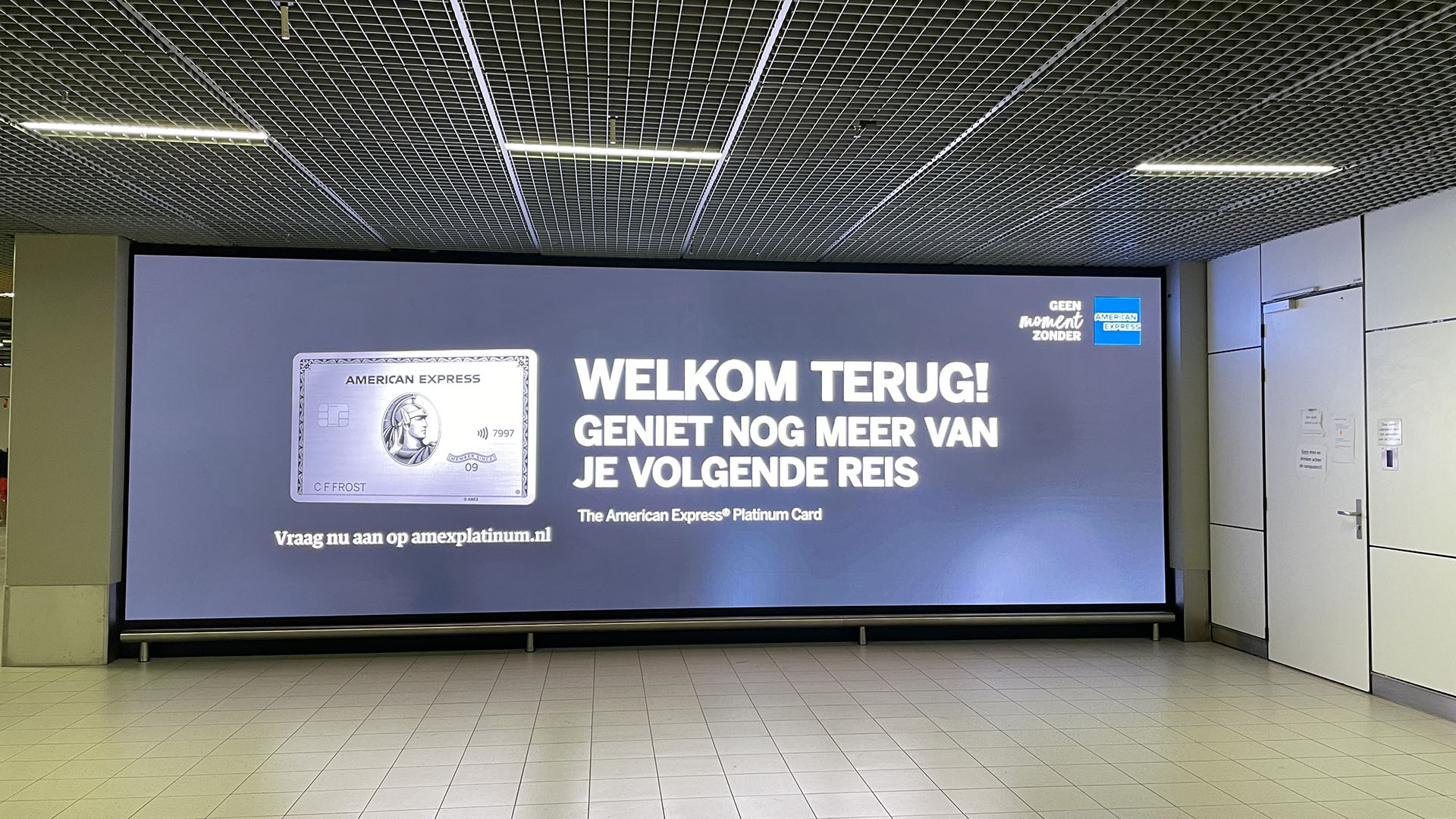

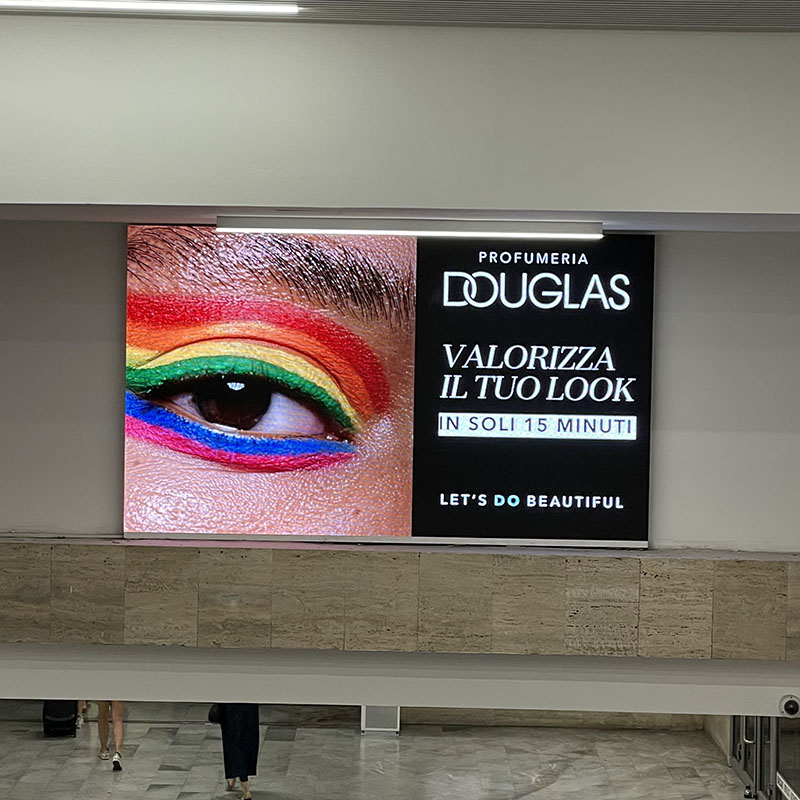

Applications
Parameter Table

RIG Specifications

RIG – 1.5

RIG – 1.8

RIG – 2

RIG – 4

Pixel Pitch (mm)

1.538

1.86

2.0

4.0

Pixel Configuration

1R1G1B

1R1G1B

1R1G1B

1R1G1B

Pixel density

422,753

289,050

250,000

62,500

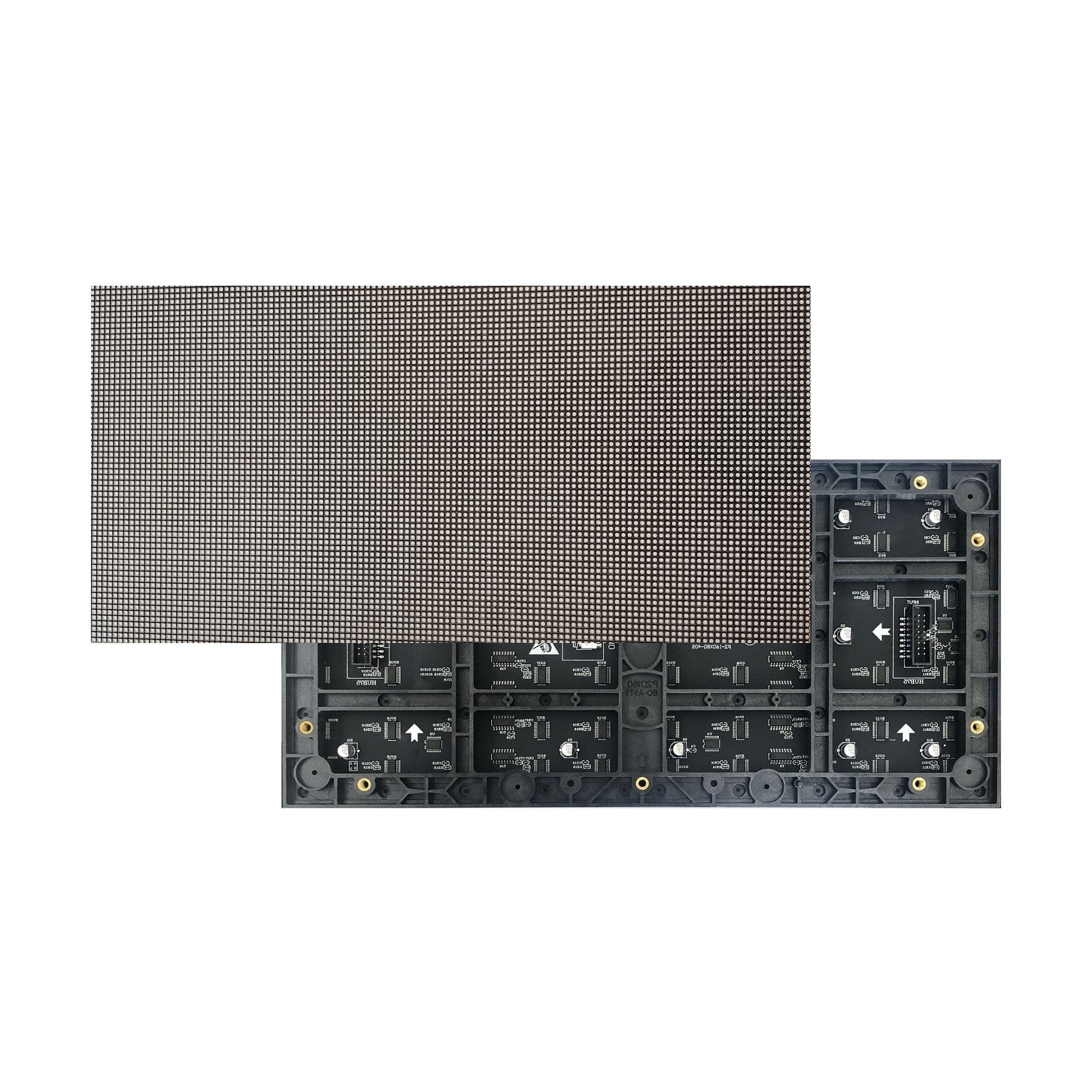

Module Dimensions(mm)

320x160

172x86

320x160

320x160

Module Resolution

208*104

96*96

160*80

80*40

Cabinet Dimensions(mm)

960/640*480

Cabinet weight (kg/pcs)

12/8.5

12/8.5

12/8.5

12/8.5

Brightness(nits)

800-1000

800-1000

800-1000

800-1000
