Indoor Fixed&Rental Installation
Pixel Pitch: 1.9mm, 2.5mm, 4.0mm

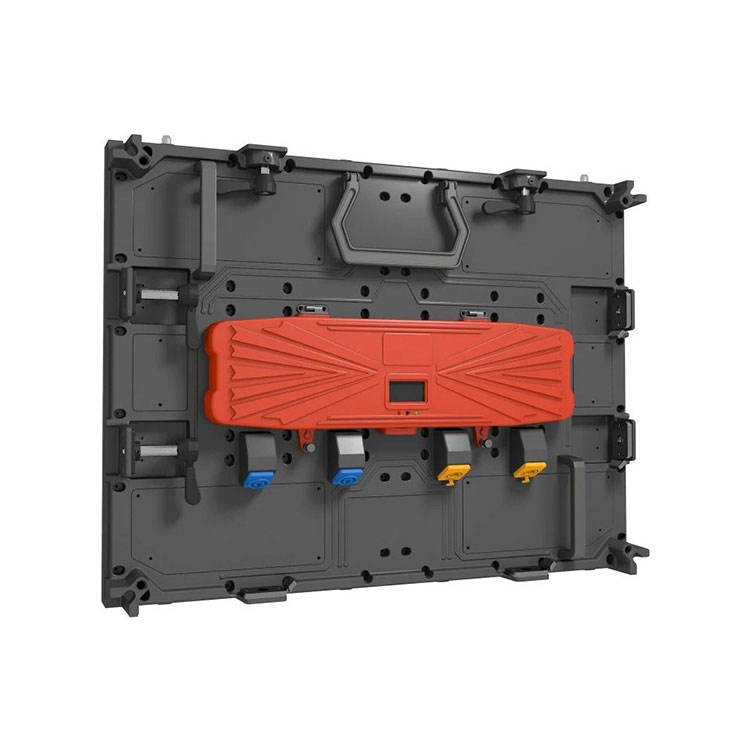

R640 Series is made on integrated and die-casting cabinet, solid and reliable. The cabinet is equipped with fast assembly connection which can make screen disassembled fast. Meanwhile, it is designed with automatic alignment mechanism which can realize fast installation by single person. R640 series is an entry-level model for indoor use in shopping malls, advertisements, conferences, etc. It realizes the possibility of mass production and rapid delivery services, which effectively reduces the user's procurement costs.
Features:
- High-precision aluminum alloy die-casting cabinet,
- Front or rear maintenance optional,
- Fast installation mechanism,
- 16:9 Available,
- Muti function for both rental and fixed installation.
R640 Specifications | R640 – 2.5 | R640 – 4.0 |
Pixel Pitch (mm) | 2.5 | 4.0 |
Pixel Configuration | 1R1G1B | 1R1G1B |
Pixel density | 160000 | 62500 |
Module Dimensions(mm) | 320x160 | 320x160 |
Module Resolution | 128*64 | 80*40 |
Cabinet Dimensions(mm) | 640*480*75 | |
Cabinet weight (kg/sqm) | 24 | 24 |
Brightness(nits) | 600 - 800 | 800 - 1000 |
