RFS Series

Fine Pitch LED Display

Pixel Pitch: 0.9mm, 1.2mm, 1.5mm, 1.8mm


Fine pitch LED Display is one of the important factors in ensuring a superior visual performance.

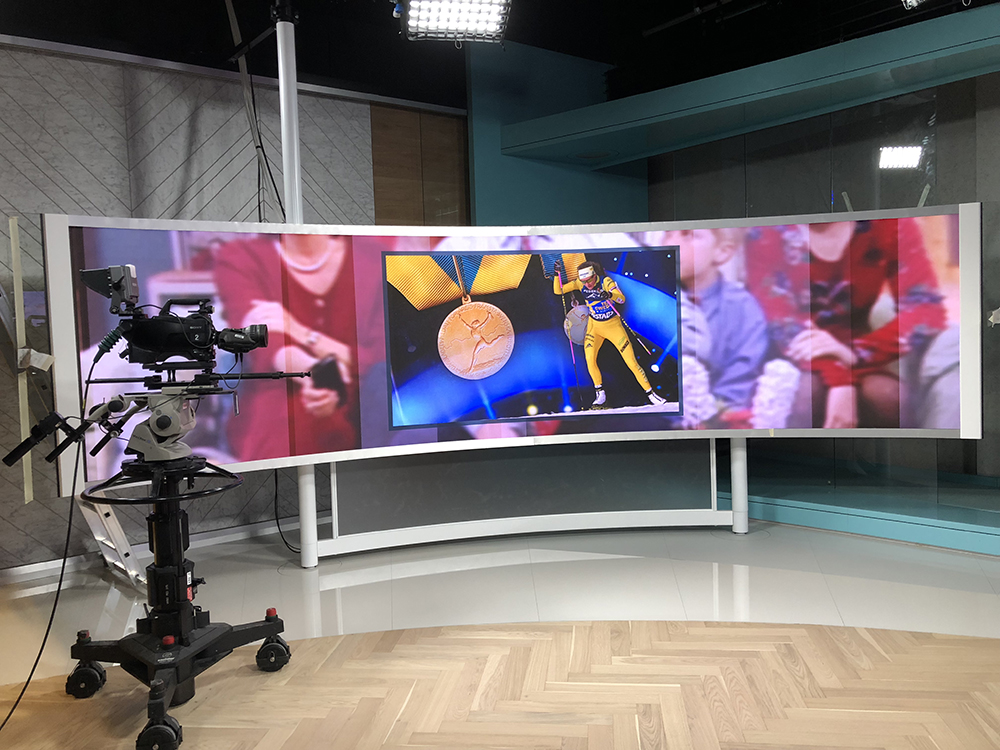

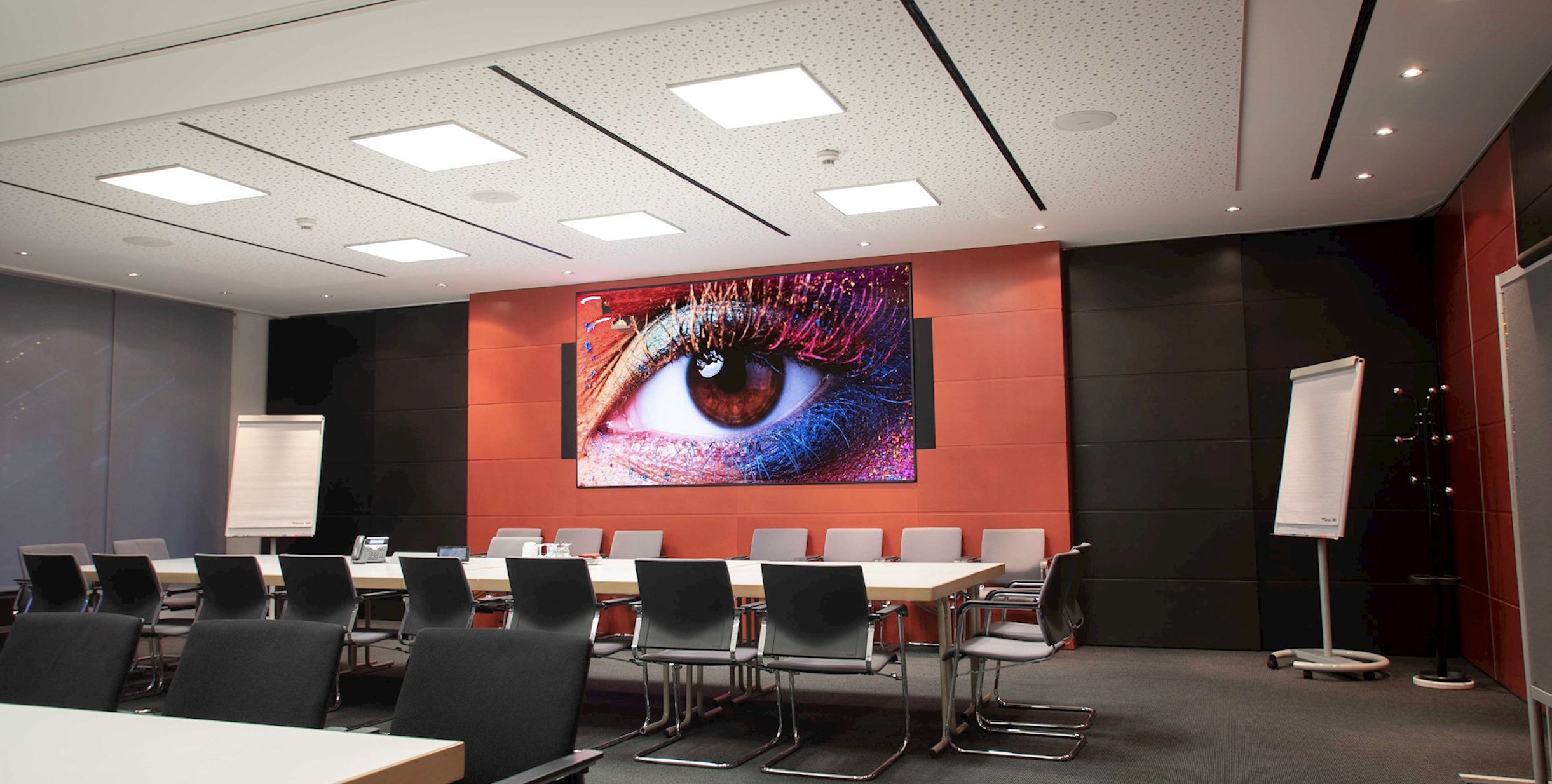

The RFS Series from Renovo provides excellent solutions of LED screen for conference room, education system, broadcasting and so on, which requires 16:9 contrast ratio and high resolution. Besides, the dual back system guarantee the screen will never go dark and integrated wireless connector provides easy and stable collection between cabinets.


Features:


  1. Wireless connection for both power and signal

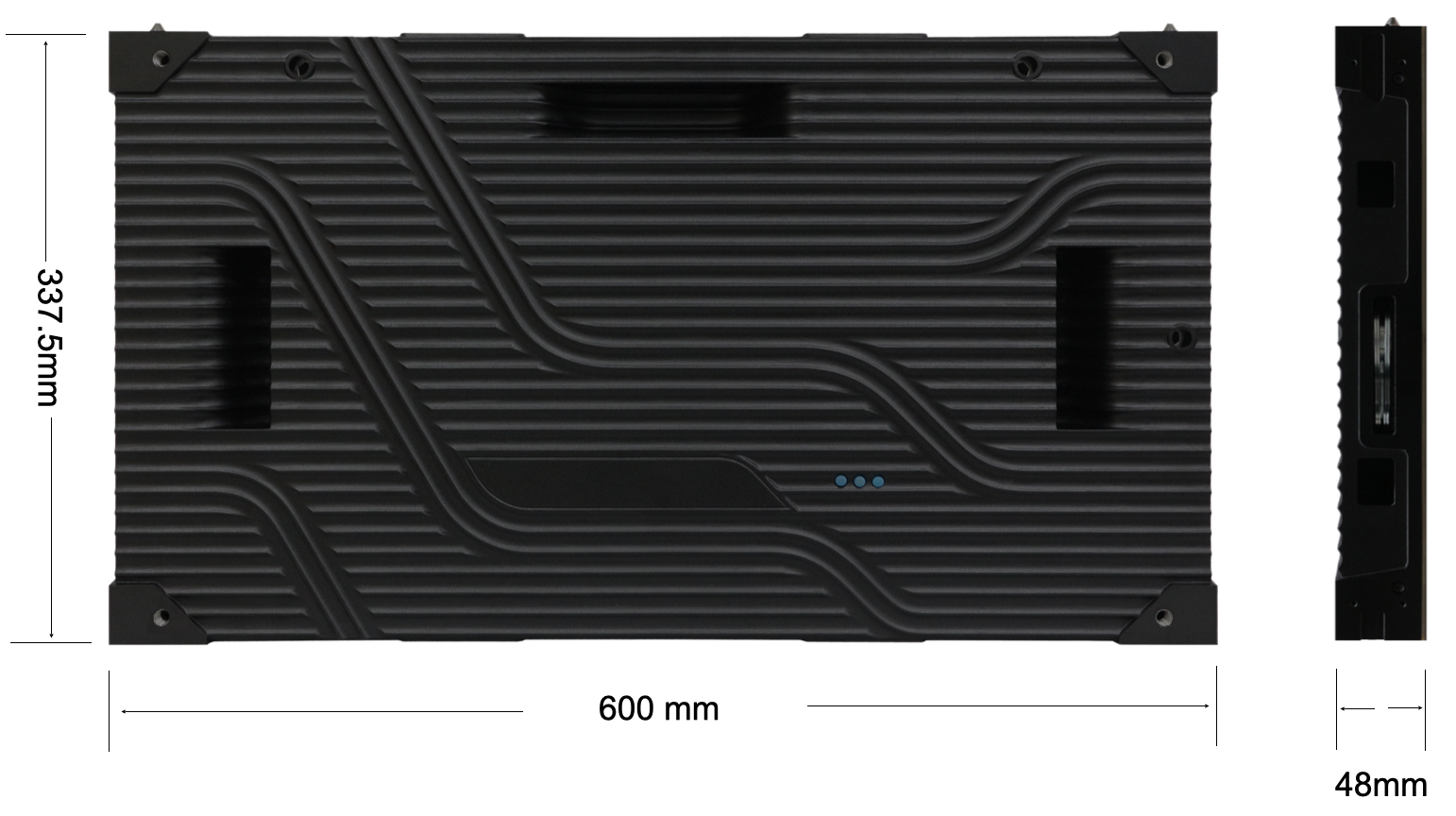

  2. 16:9 golden ratio cabinet size in 600x337.5mm

  3. High refresh rate >3840Hz

  4. Dual backup system

  5. Light weight <7kg/pc cabinet

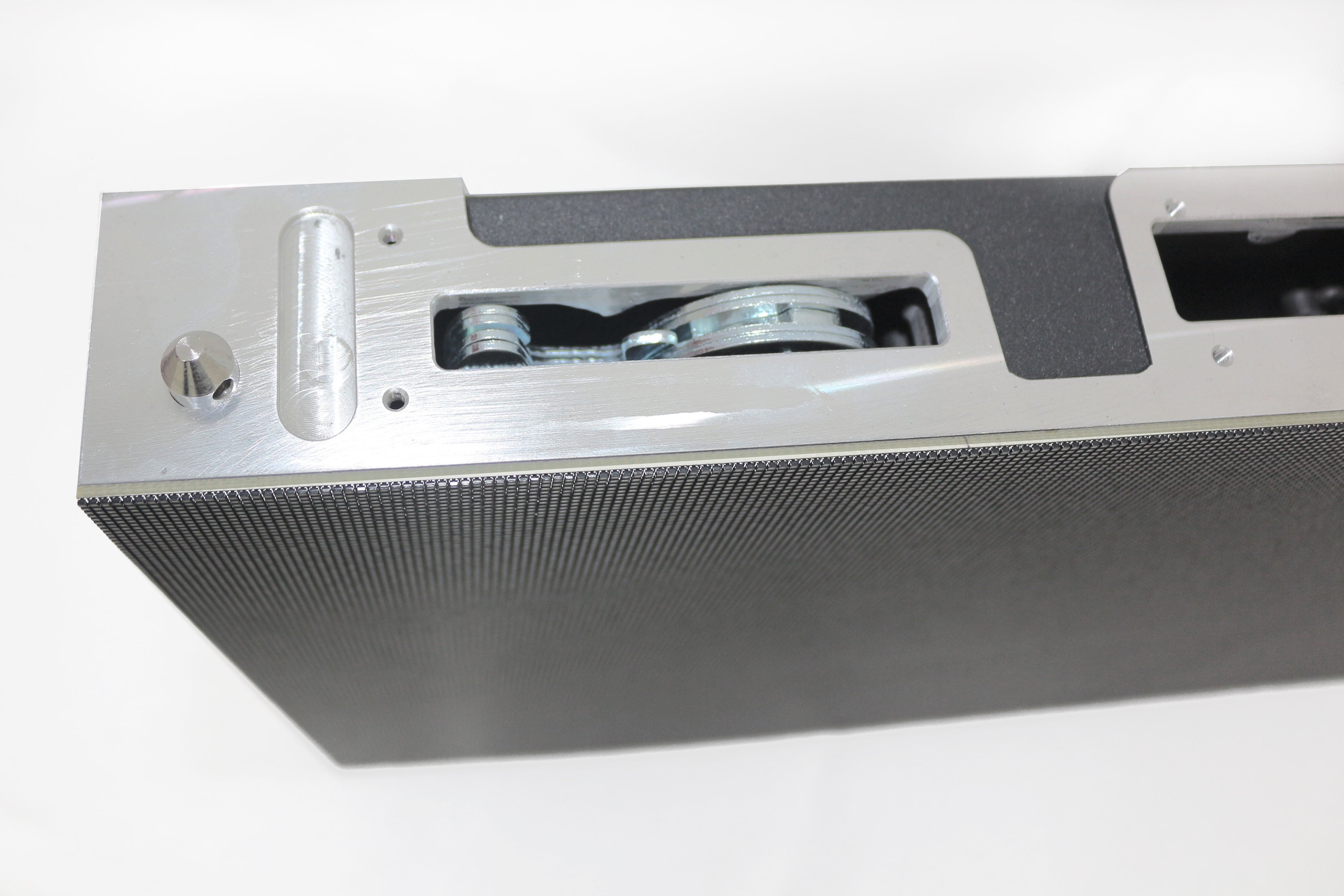

  6. Fast lock system

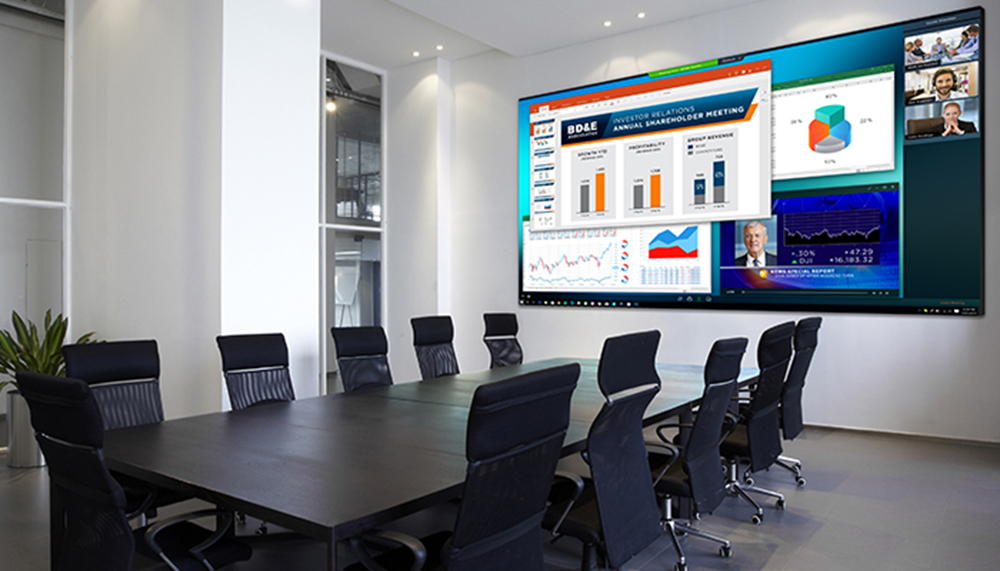

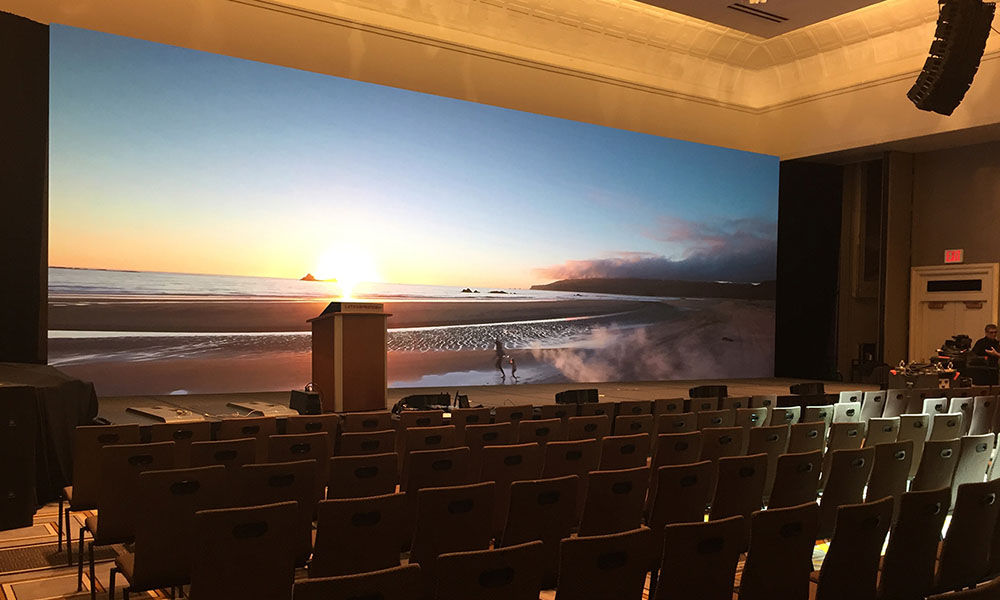

Applications
Parameter Table

RFS Specifications

P0.9

P1.2

P1.5

P1.8

Pixel Pitch (mm)

0.9375

1.25

1.56

1.875

LED Lamp

Miniled

Miniled

SMD1212

SMD1515/SMD1010

Pixel Configuration

1R1G1B

1R1G1B

1R1G1B

1R1G1B

Pixel density

1,137,800

640,000

409,600

284,444

Module Dimensions(mm)

150x168.75

150x168.75

150x168.75

150x168.75

Module Resolution

160x180

120*270

96*108

80*90

LED Cabinet weight (kg/pc)

7

7

7

7

Brightness(nits)

400-600

400-600

400-600

400-600
