RTV Series

All  in one LED Display TV

Pixel Pitch: 1.2mm, 1.5mm, 1.8mm


LED conference all-in-one Display, also known as “smart conference tablet” and “conference tablet all-in-one machine”, is a new generation of intelligent conference equipment. It integrates a variety of conference equipment such as projectors, screens, multi-touch screens, video playback, audio, computer and file management, wireless transmission, and video conferencing.

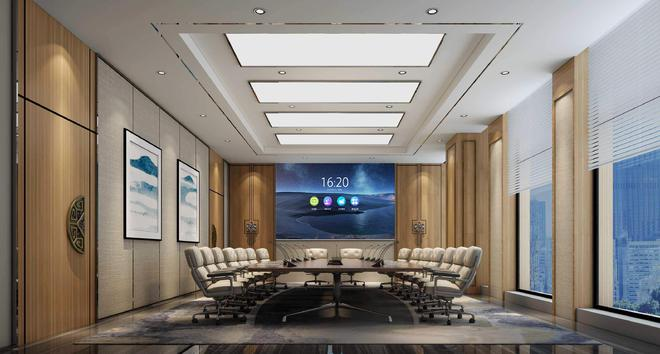

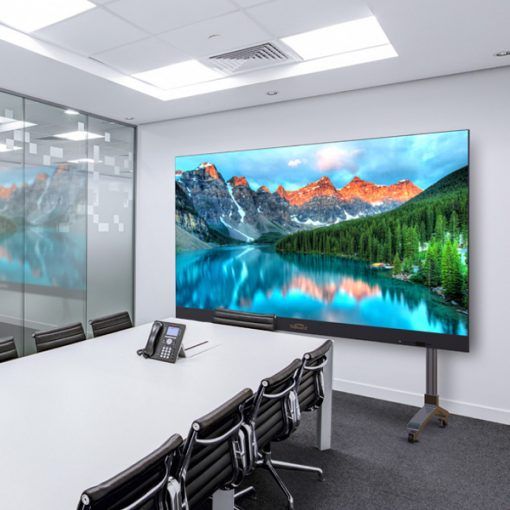

The main application fields of LED conference all-in-one screen are corporate office space, education and training, government and enterprise units and smart medical care.


Features:


  1. Wireless connection for both power and signal
  2. 16:9 golden ratio
  3. FHD, 2K
  4. High refresh rate >3840Hz
  5. Dual backup system
  6. Portable
  7. Interactive system available


Applications
Parameter Table

RTV Specifications

RTV – 1.2 (108’’)

RTV – 1.5 (136’’)

RTV – 1.8 (163’’)

Pixel Pitch (mm)

1.25

1.56

1.875

LED Lamp

Miniled

Miniled

SMD1515/SMD1010

Pixel Configuration

1R1G1B

1R1G1B

1R1G1B

Pixel density

640,000

409,600

284,444

LED Screen Size (mm)

2430x1475

3030x1812.5

3630x2840

Whole System Size (mm)

2430x2165

3030x2502.5

3630x2840

Video Interface

HDMIX3(2 input, 1 output), USB3.0, USB2.0x2, RF

Signal Interface

RJ45, USD-B. Wifi, Bluetooth, Infrared

Audio Interface

Internal 2x5w Speaker, External audio interface

Installation Mode

Moveable/wall-mounted
