ROF Series

Outdoor Advertising LED Display

Pixel Pitch: 5.7mm, 6.67mm, 8mm, 10mm


Main Feature: Full Aluminum Cabinet, Energy Saving, Hiding Cables.


ROF series outdoor LED display has advantages of high heat dissipation rate and energy saving 30% comparing with normal displays while with high brightness up to 8,000 nits. Those features make ROF series to play very well in extreme circumstance like very high and low temperature, high humidity and salty spray environment. The standard cabinet size 960*960mm makes it quite easy to replace your old ones. ROF series could also help saving your installation labor cost at as light weight as 25kg/pc cabinet.


Features:


  1. Both front and rear access
  2. Good heat dissipation
  3. Energy saving up to 30%
  4. Hiding cables design
  5. Light weight 25kg/pc cabinet

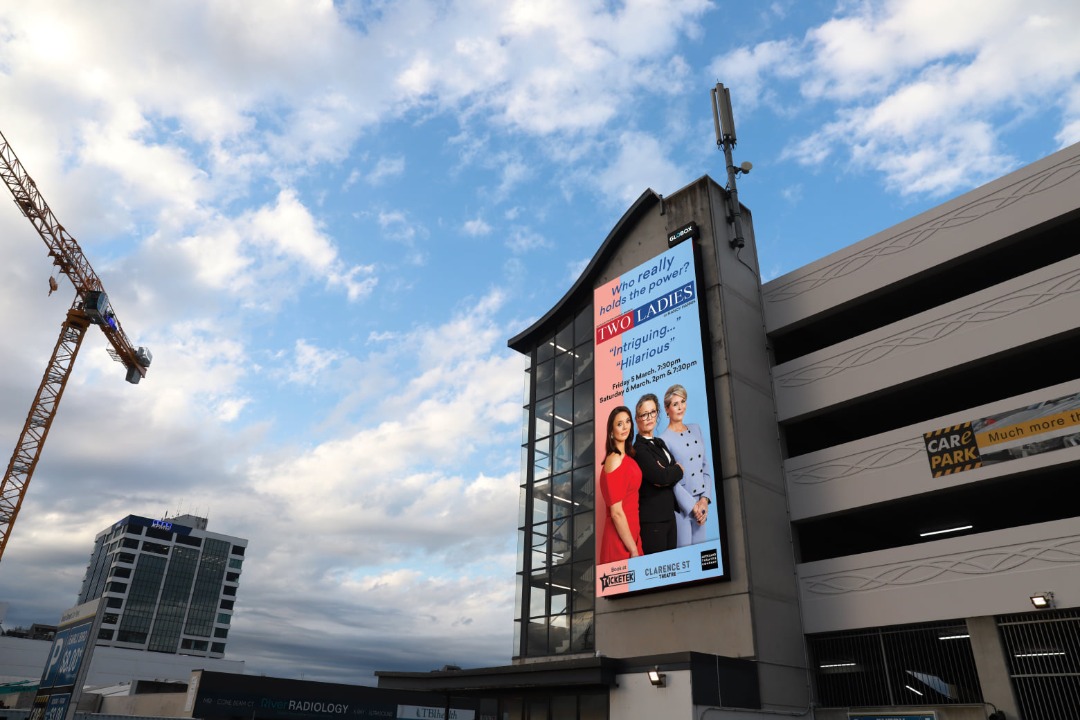

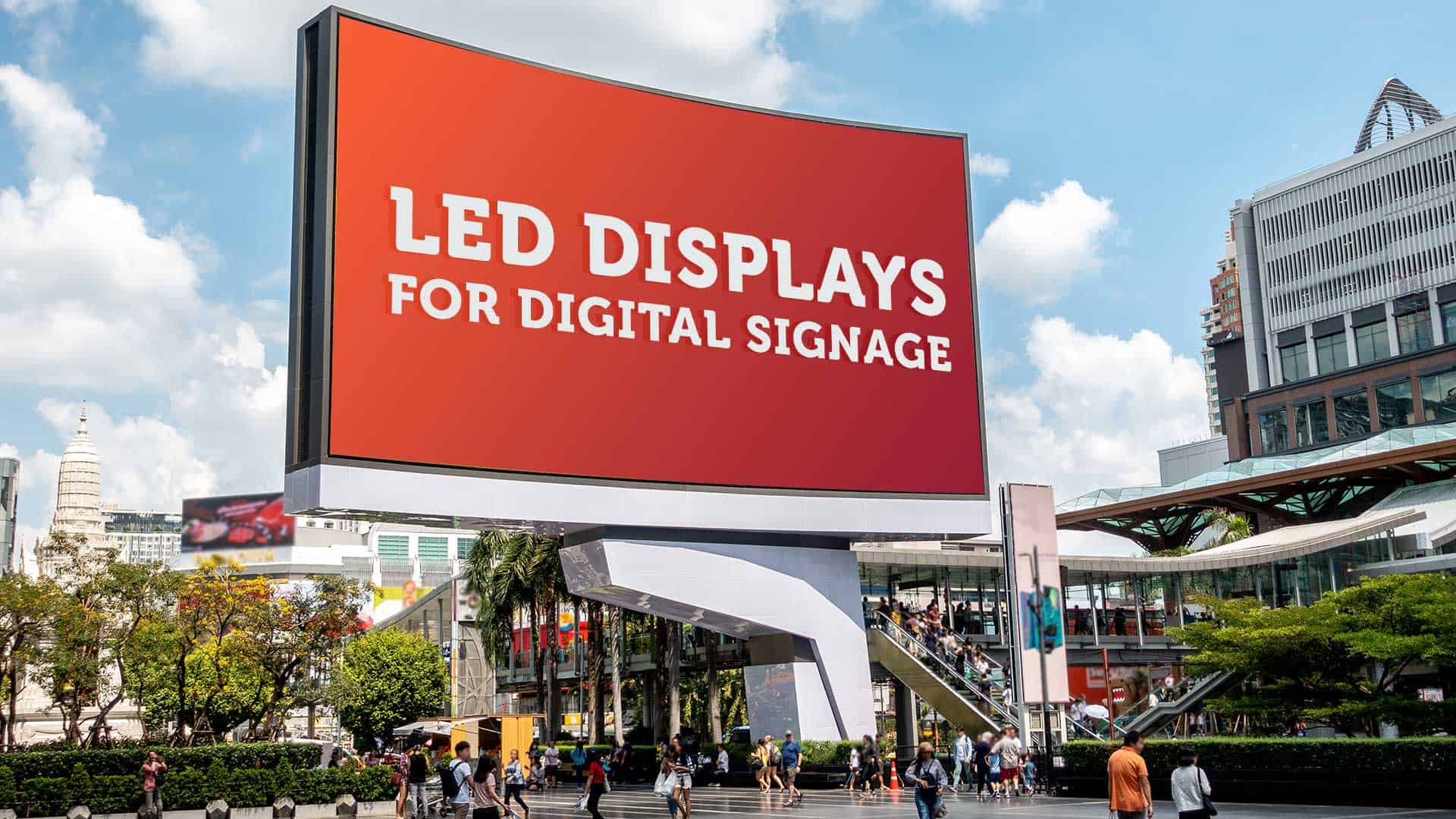

Applications
Parameter Table

ROF Specifications

P5

P6

P8

P10

Pixel Pitch (mm)

5.7

6.67

8

10

Pixel Configuration

1R1G1B

1R1G1B

1R1G1B

1R1G1B

Pixel density

40000

22500

14400

10000

Module Dimensions(mm)

480x320

480x320

480x320

480x320

Module Resolution

84x56

72x48

60x40

48x32

Cabinet Dimensions(mm)

960x960

960x960

960x960

960x960

Cabinet weight (kg/pc)

25

25

25

25

Brightness(nits)

4,000-6,000

6,000-8,000

6,000-8,000

6,000-8,000

IP Degree

IP67

IP67

IP67

IP67
