RTA Series

Rental LED Display

Pixel Pitch: Indoor 1.9mm, 2.6mm, 2.9mm, 3.91mm, 4.81mm

                     Outdoor 2.6mm, 2.9mm, 3.91mm, 4.81mm


Main Feature: The same cabinet design for both indoor and outdoor applications, mix use available for 500x500mm and 500x1000mm cabinets.


RTA series LED display is a popular and classic product for different kinds of events, stage, large press conference etc. The multiple installation methods like hanging installation, stacking, misplaced splicing etc would help you create marvellous events.


Features:


1. Cabinet size: 500x500mm, 500x1000mm,

2. The same design for indoor and outdoor,

3. Fast lock system,

4. Curve lock system,

5. Combine use by cabinets in different sizes,

6. Supporting hanging installation, stacking installation etc,

7. Front and rear access.

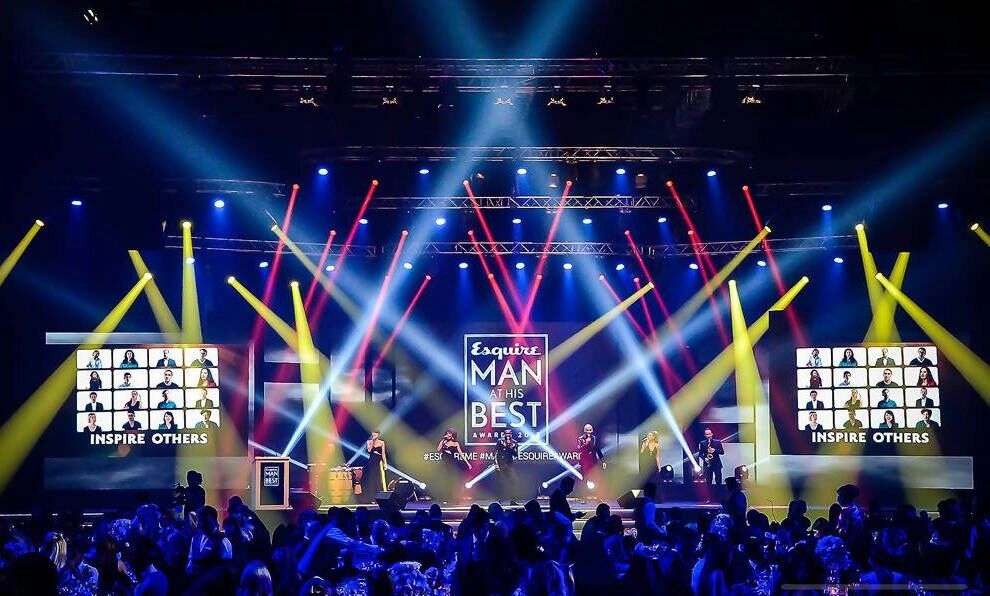

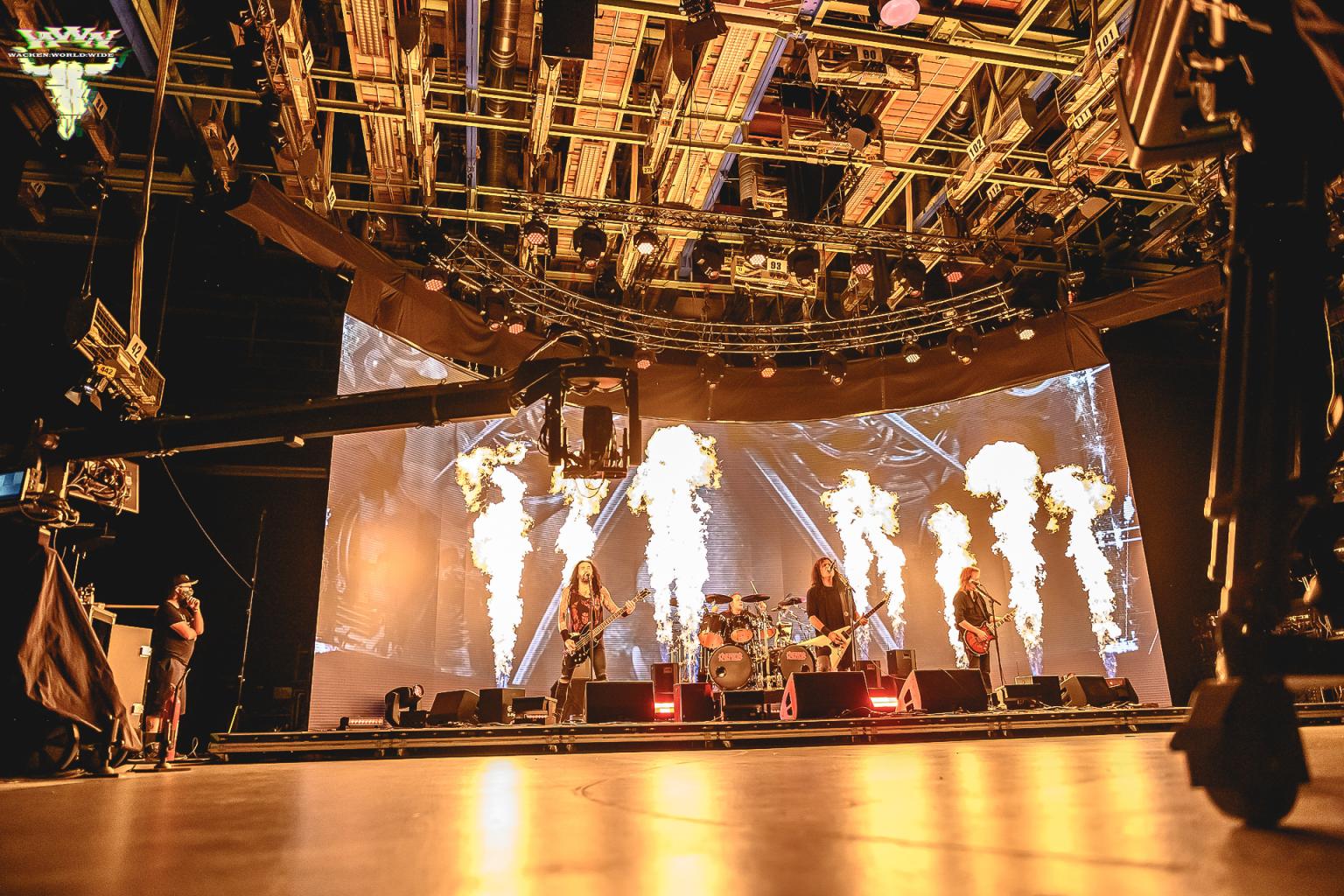

Applications
Parameter Table

RTA Indoor Specifications

P1.9

P2.6

P2.9

P3.9

P4.8

Pixel Pitch (mm)

1.95

2.604

2.97

3.91

4.81

Pixel Configuration

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

Pixel density(m²)

262,144

147,456

112,896

65,536

43,264

Module Dimensions(mm)

250x250

250x250

250x250

250x250

250x250

Module Resolution

128x128

96x96

84x84

64x64

52x52

Cabinet Dimensions(mm)

500x500/500x1000

Cabinet weight (kg/pc)

7.5kg(500x500mm), 12kg(500x1000mm)

Brightness(nits)

800 - 1000

IP Grade

IP21


RTA Indoor Specifications

P2.6

P2.9

P3.9

P4.8

Pixel Pitch (mm)

2.604

2.97

3.91

4.81

Pixel Configuration

1R1G1B

1R1G1B

1R1G1B

1R1G1B

Pixel density(m²)

147,456

112,896

65,536

43,264

Module Dimensions(mm)

250x250

250x250

250x250

250x250

Module Resolution

96x96

84x84

64x64

52x52

Cabinet Dimensions(mm)

500x500/500x1000

Cabinet weight (kg/pc)

8kg(500x500mm), 13kg(500x1000mm)

Brightness(nits)

4500 - 5000

IP Grade

IP65
