RTB Series

Virtual Reality LED display

Pixel Pitch: Indoor 1.9mm, 2.5mm, 2.6mm, 2.9mm, 3.91mm

Outdoor 2.6mm, 2.9mm, 3.91mm, 4.81mm, 5.9mm

Main Advantage: XR/VR Solutions

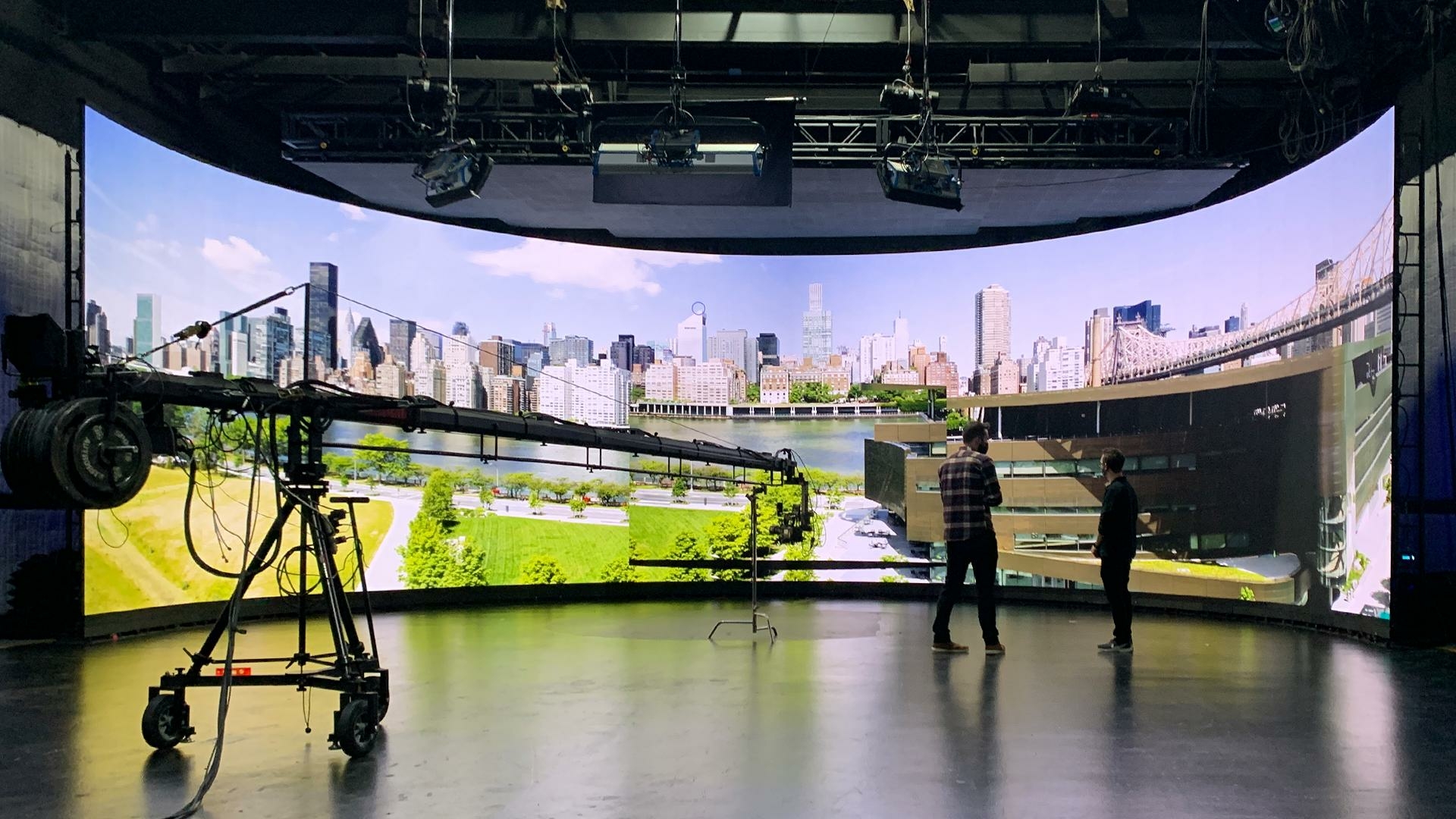

We’re so sure you’re well known about there’re so many XR/VR production/applications.Which you can have with RTB series led display is a vivid visual feast and an ultimate immersive experience. It’s widely used in TV studios, film making, e-sports and any other place which needs a virtual reality or extended reality solution.

Features:

Up to 7680Hz,
Over 5000:1 contrast,
Available installations in hanging, stacking, dance floor and ceiling,
Compatible with brompton control system,

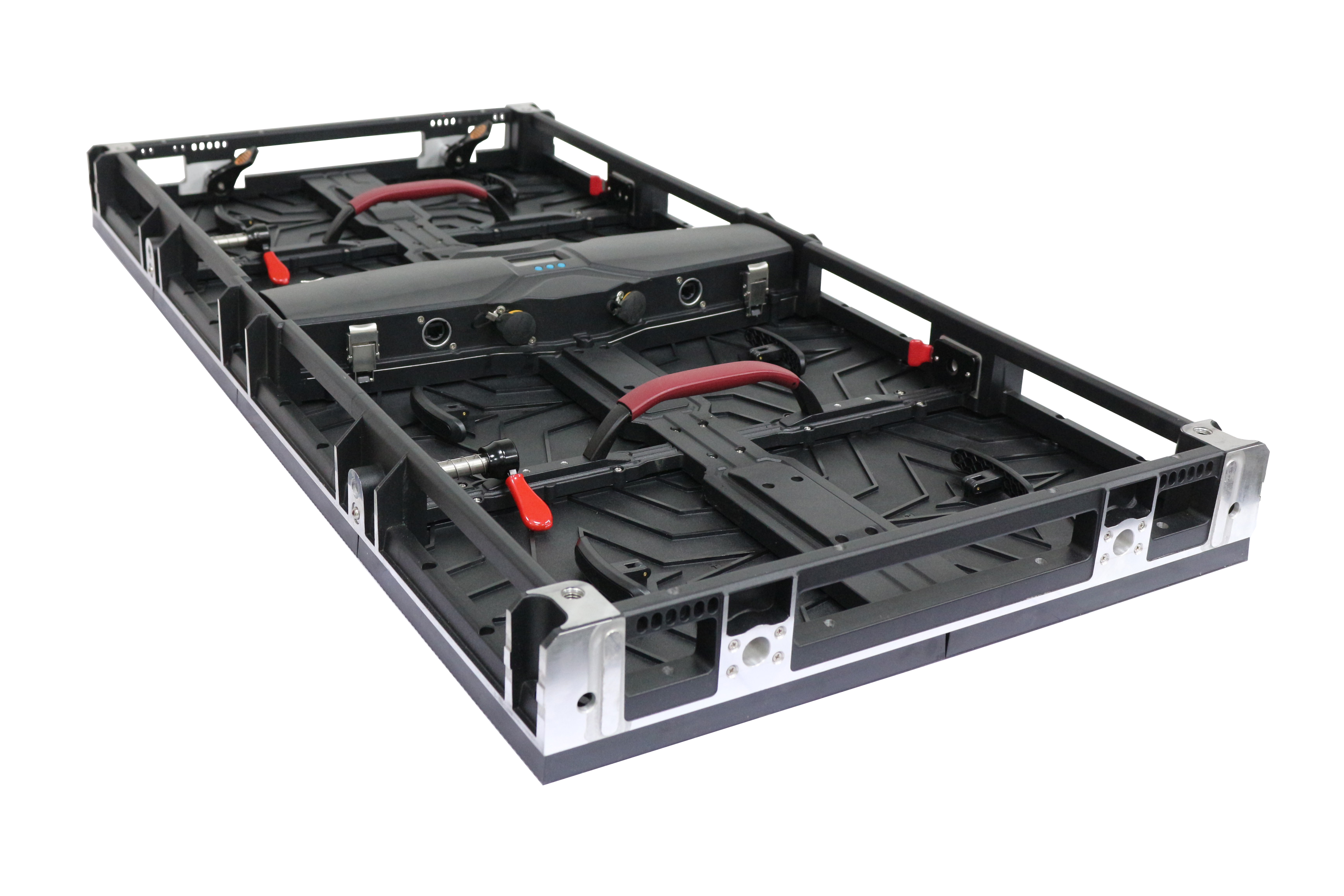

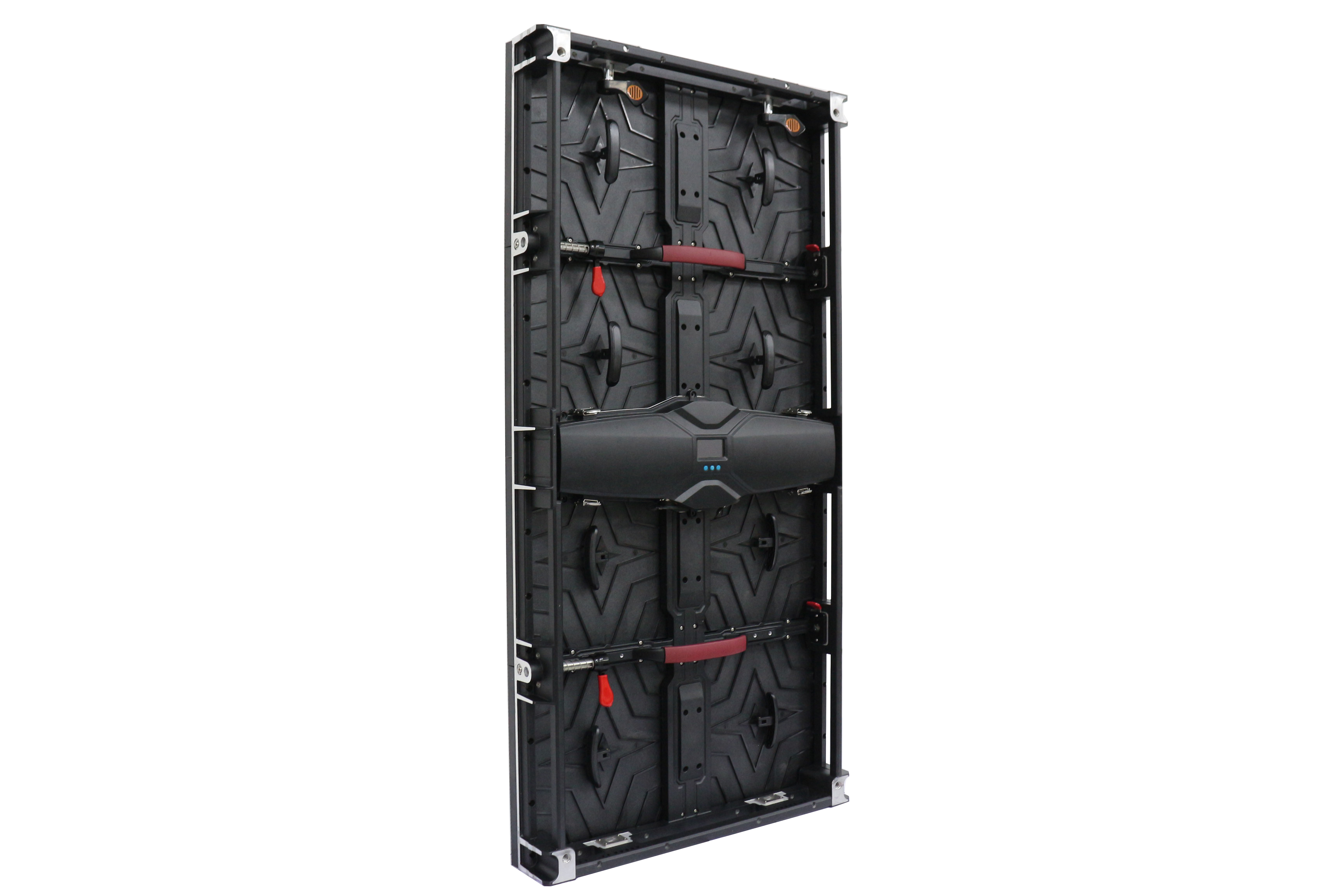

The whole series sharing the same cabinet frame design,
A superior LED product for any indoor and outdoor events.

Parameter Table

RTB Indoor Specifications	P1.9	P2.5	P2.6	P2.9	P3.9
Pixel Pitch (mm)	1.95	2.5	2.604	2.97	3.91
Pixel Configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Pixel density(m²)	262,144	160,000	147,456	112,896	65,536
Module Dimensions(mm)	250x250	250x250	250x250	250x250	250x250
Module Resolution	128x128	100x100	96x96	84x84	64x64
Cabinet Dimensions(mm)	500x500/500x1000
Cabinet weight (kg/pc)	7.5kg(500x500mm), 12.5kg(500x1000mm)
Brightness(nits)	800 - 1000
IP Grade	IP21

RTB outdoor Specifications	P2.6	P2.9	P3.9	P4.8	P5.9
Pixel Pitch (mm)	2.604	2.97	3.91	4.81	5.952
Pixel Configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Pixel density(m²)	147,456	112,896	65,536	43,264	28,224
Module Dimensions(mm)	250x250	250x250	250x250	250x250	250x250
Module Resolution	96x96	84x84	64x64	52x52	32x32
Cabinet Dimensions(mm)	500x500/500x1000
Cabinet weight (kg/pc)	8kg(500x500mm), 13kg(500x1000mm)
Brightness(nits)	4000 - 4500	4000 - 4500	4500 - 5000	4500 - 5000	4500 - 5000
IP Grade	IP65
