RTC Series

Cost-Effective Rental LED Display

Pixel Pitch: Indoor 1.9mm, 2.6mm, 2.9mm, 3.91mm, 4.81mm

                     Outdoor 2.9mm, 3.91mm, 4.81mm


Main Advantage: Stock at any time,  Cost performance, easy installation.

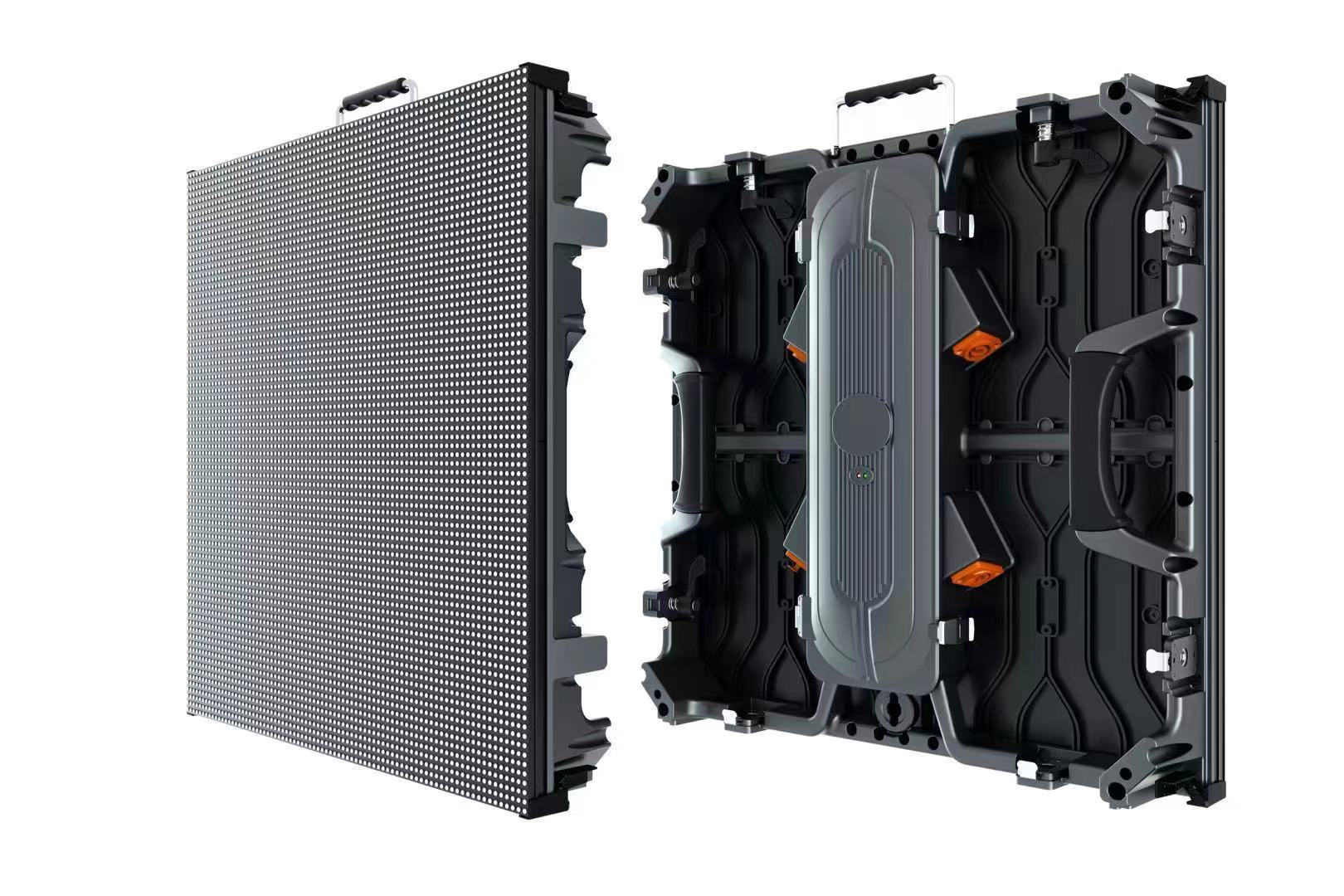

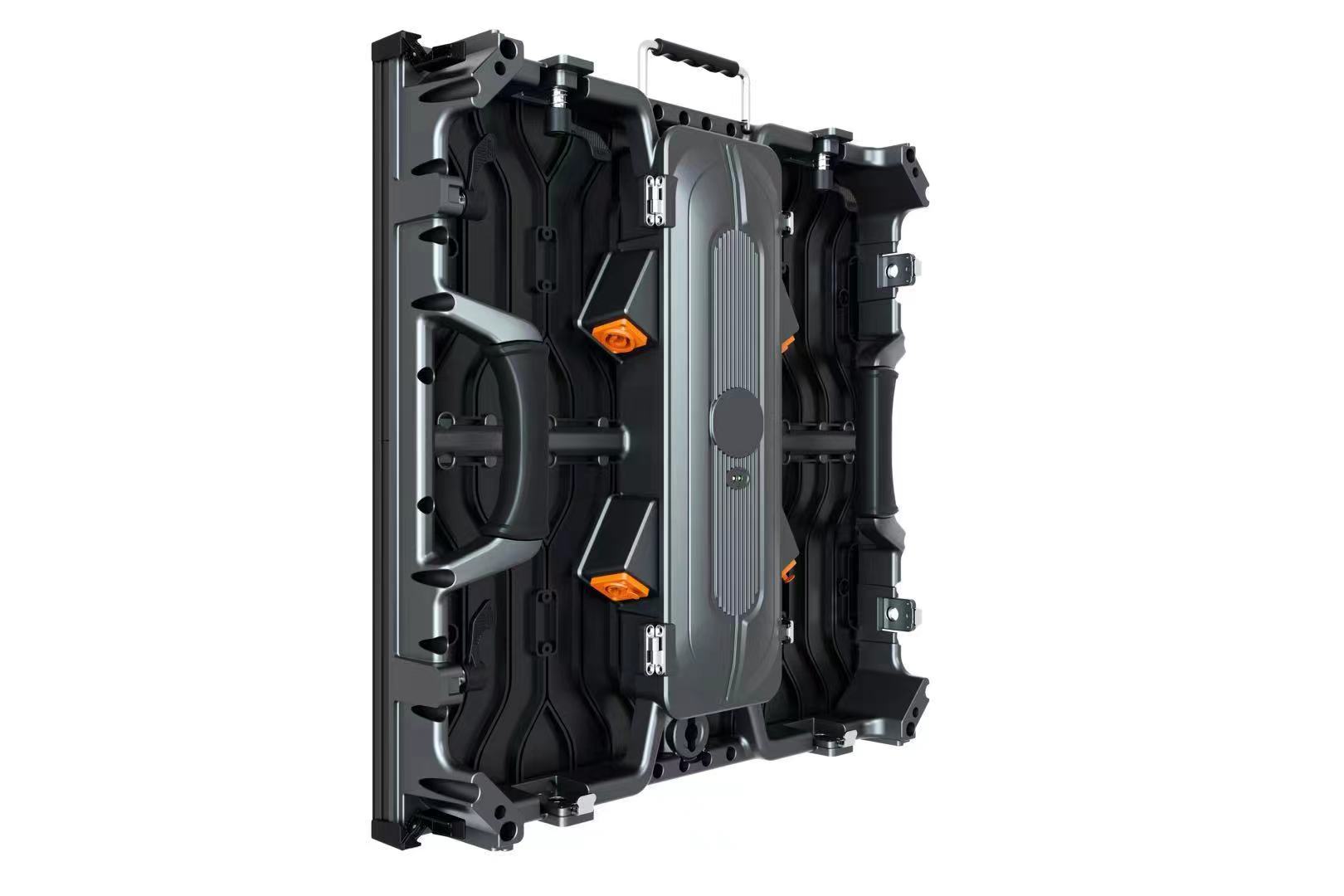

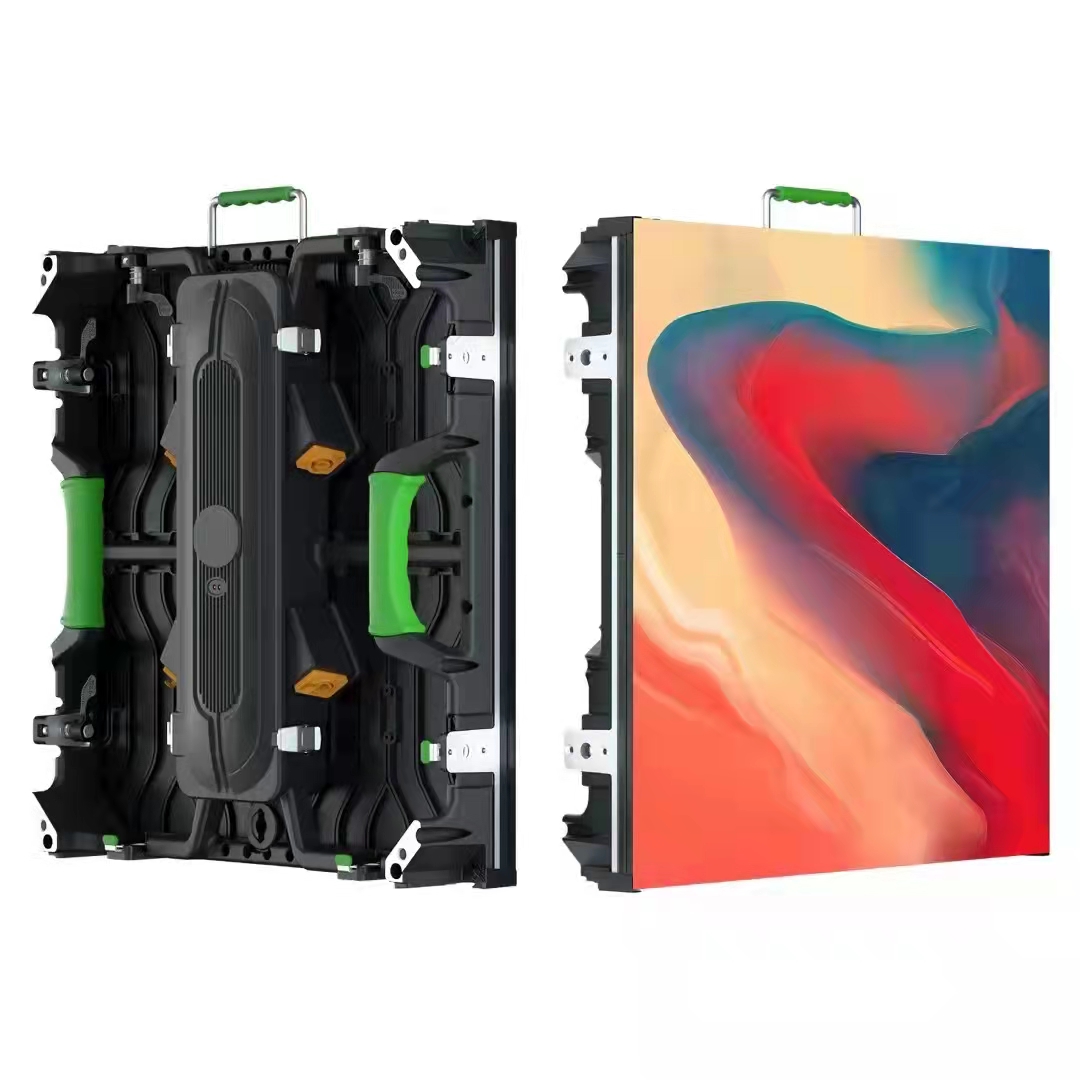

RTC series LED display is an insight design for events, which provides fast installation, easy connection between cabinets, intelligent led modules and stable performance. Moreover, we’re always keeping stock of it to reach your instant request on a rental screen.


Features:


- Stainless steel locks, strong and safe lock system.

- 500x500 and 500x1000mm cabinets can be combined horizontal and vertical.

- Multiple mounting options: stacking or hanging installation

- Fast-locking system, fast & easy installation

- High brightness, IP65 for outdoor models.

- Good heat dissipation without any fans.

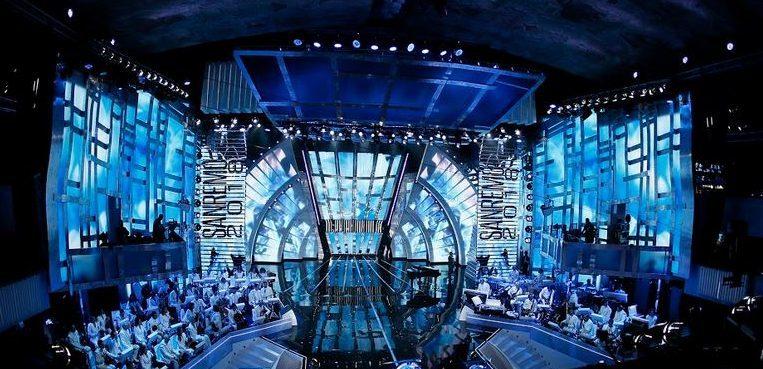

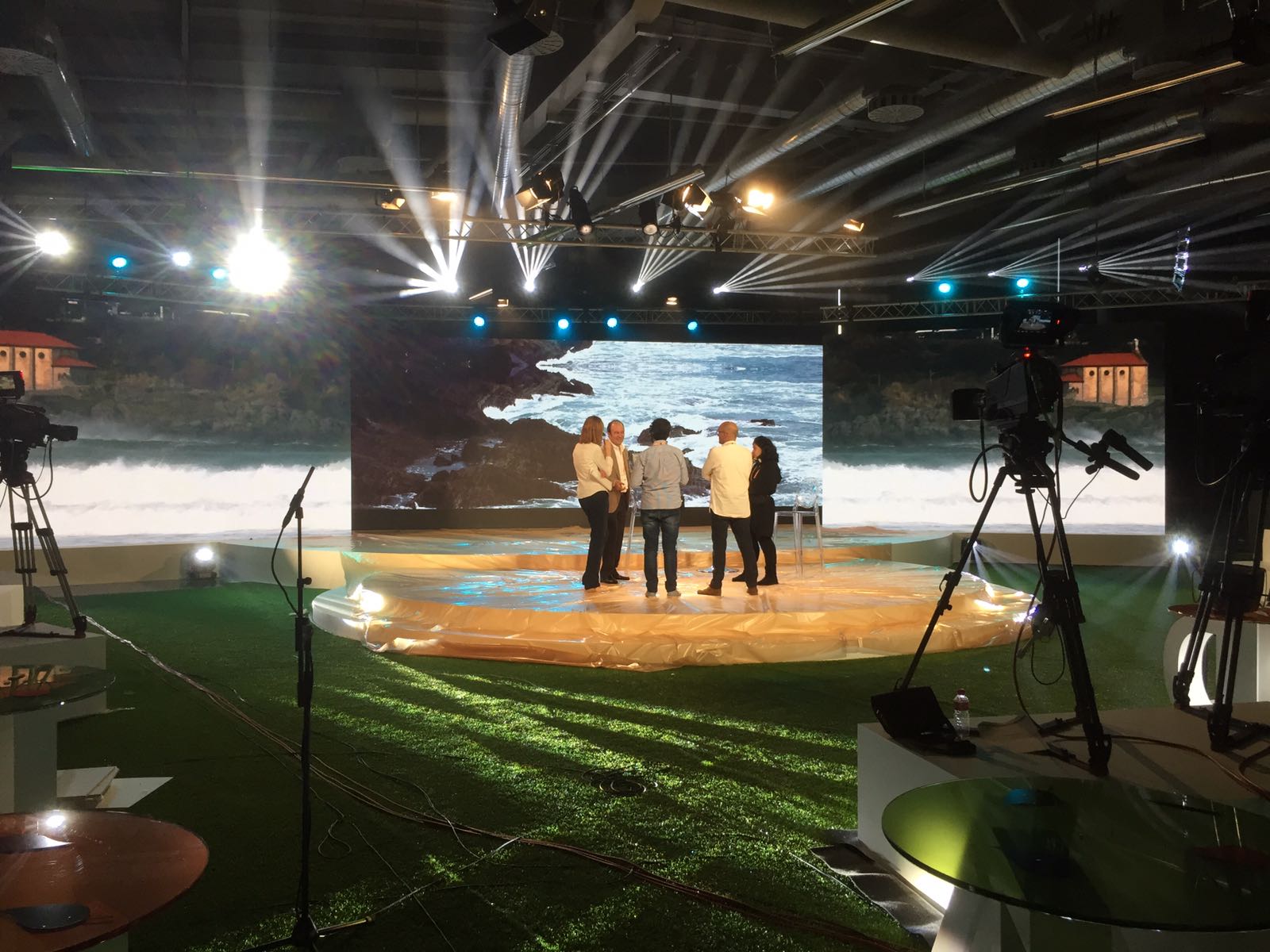

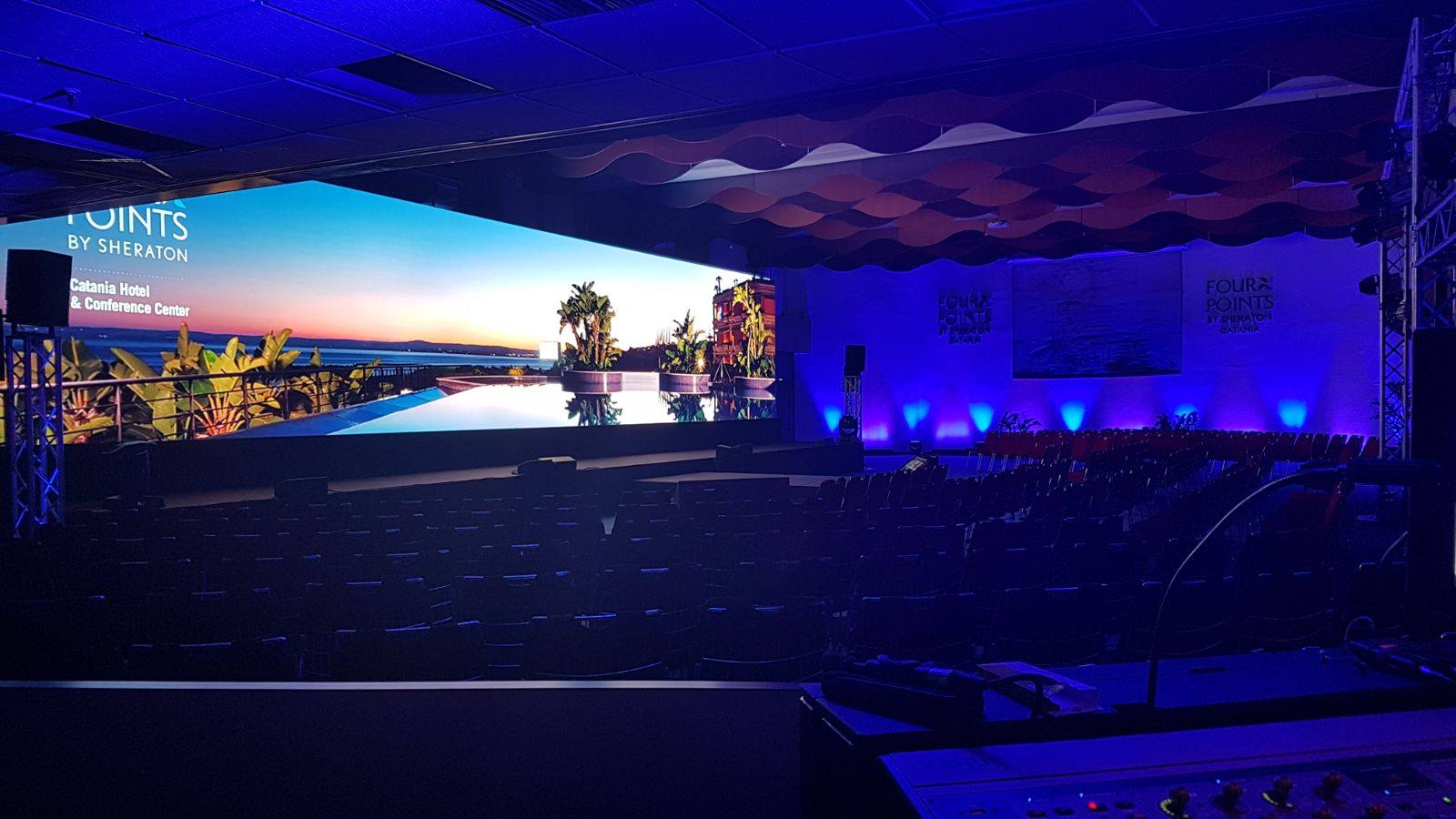

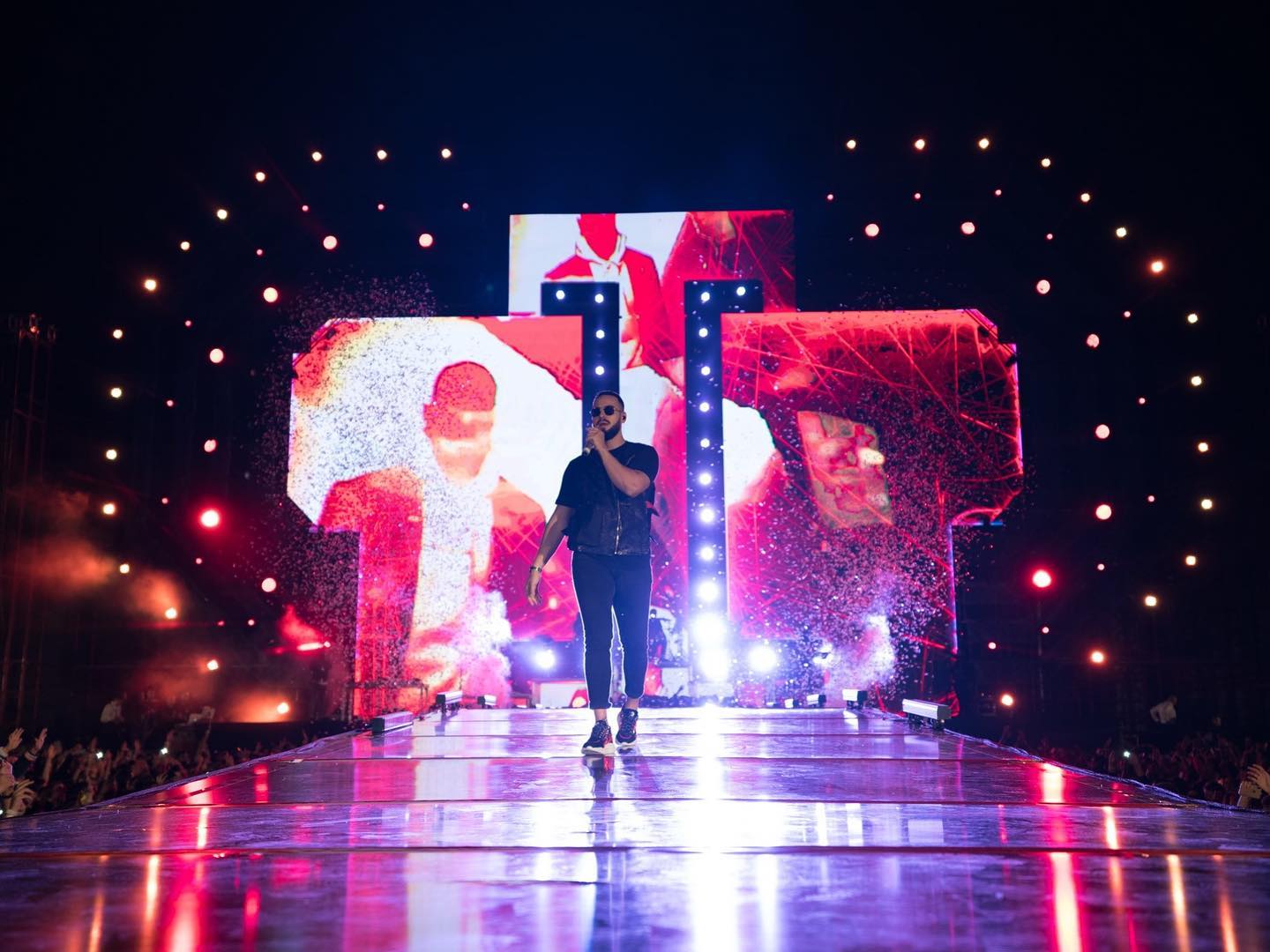

Applications
Parameter Table

RTC Indoor Specifications

P1.9

P2.6

P2.9

P3.9

P4.8

Pixel Pitch (mm)

1.95

2.604

2.97

3.91

4.81

Pixel Configuration

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

Pixel density(m²)

262,144

147,456

112,896

65,536

43,264

Module Dimensions(mm)

250x250

250x250

250x250

250x250

250x250

Module Resolution

128x128

96x96

84x84

64x64

52x52

Cabinet Dimensions(mm)

500x500/500x1000

Cabinet weight (kg/pc)

6.8kg(500x500mm), 11.5kg(500x1000mm)

Brightness(nits)

800 - 1000

IP Grade

IP21



RTC outdoor Specifications

P2.9

P3.9

P4.8

Pixel Pitch (mm)

2.97

3.91

4.81

Pixel Configuration

1R1G1B

1R1G1B

1R1G1B

Pixel density(m²)

112,896

65,536

43,264

Module Dimensions(mm)

250x250

250x250

250x250

Module Resolution

84x84

64x64

52x52

Cabinet Dimensions(mm)

500x500/500x1000

Cabinet weight (kg/pc)

7.5kg(500x500mm), 12.5kg(500x1000mm)

Brightness(nits)

4000 - 4500

4500 - 5000

4500 - 5000

IP Grade

IP65
