TRA Series

Transparent LED Display

Pixel Pitch: 2.6-5.2mm, 3.3-6.25mm, 3.9-7.8mm, 7.8-7.8mm, 10.4-10.4mm.


Main Advantage: Optional brightness 800 - 5,000nits, high transparency, multiple dimensions.


A standard indoor LED display, installed behind a window, takes away a lot of light. With a transparant LED display, your windows can tell your story without the loss of light incidence. RTA series transparent led display allows up to 80% light transmission, with the light being able to shine through. you look straight through it! Because the LEDs are milled into the strips, you see almost no lines and the weight of the display lightens. It also makes structural changes to your premises almost unnecessary. The ideal solution for retail properties, glass buildings, shop windows and even indoor windows.


Features:


  • Wide viewing angle
  • 72 – 86% transparency rate
  • Light weight
  • Fast lock, easy installation
  • Hanging installation
  • Customize available in any shape

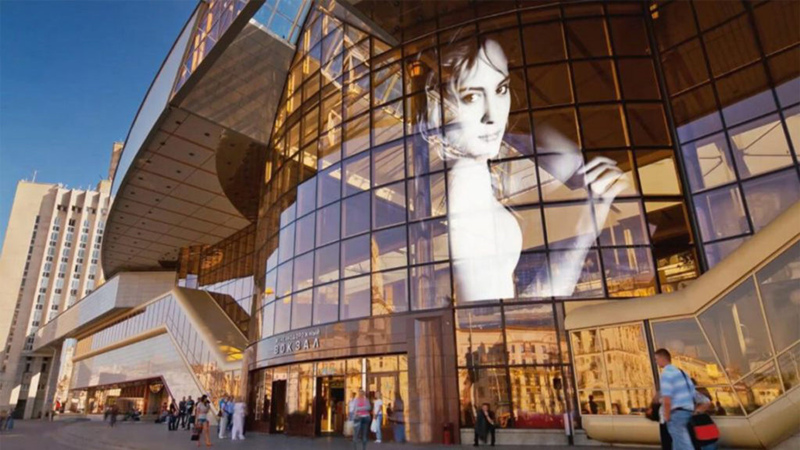

Applications
Parameter Table


RTA Specifications

P2.6-5.2

P3.3-6.25

P3.9-7.8

P7.8-7.8

P10.4-10.4

Pixel Pitch (mm)

H2.6-V5.2

H3.3-V6.25

H3.9-V7.8

H7.8-V7.8

H10.4-V10.4

Pixel Configuration

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

Pixel density(m²)

73,728

48,640

32,256

16,284

9,216

Module Dimensions(mm)

500x125

500x125

500x125

500x125

500x125

Module Resolution

192x24

152x20

126x16

64x16

48x12

Cabinet Dimensions(mm)

1000x500/1000x1000

Cabinet weight (kg/pc)

5kg(1000x500mm), 10kg(1000x1000mm)

Brightness(nits)

800 - 5,000

IP Grade

IP30

Customize shape solution

Available
