RME Series

LED Mesh Display - Transparent Media Facade

Pixel Pitch: 31.25mm, 37.5mm, 40mm, 50mm, 55mm, 62.5mm, 75mm, 100mm.


Main Advantage: Ultra light weight,  high transparency rate, excellent flexibility

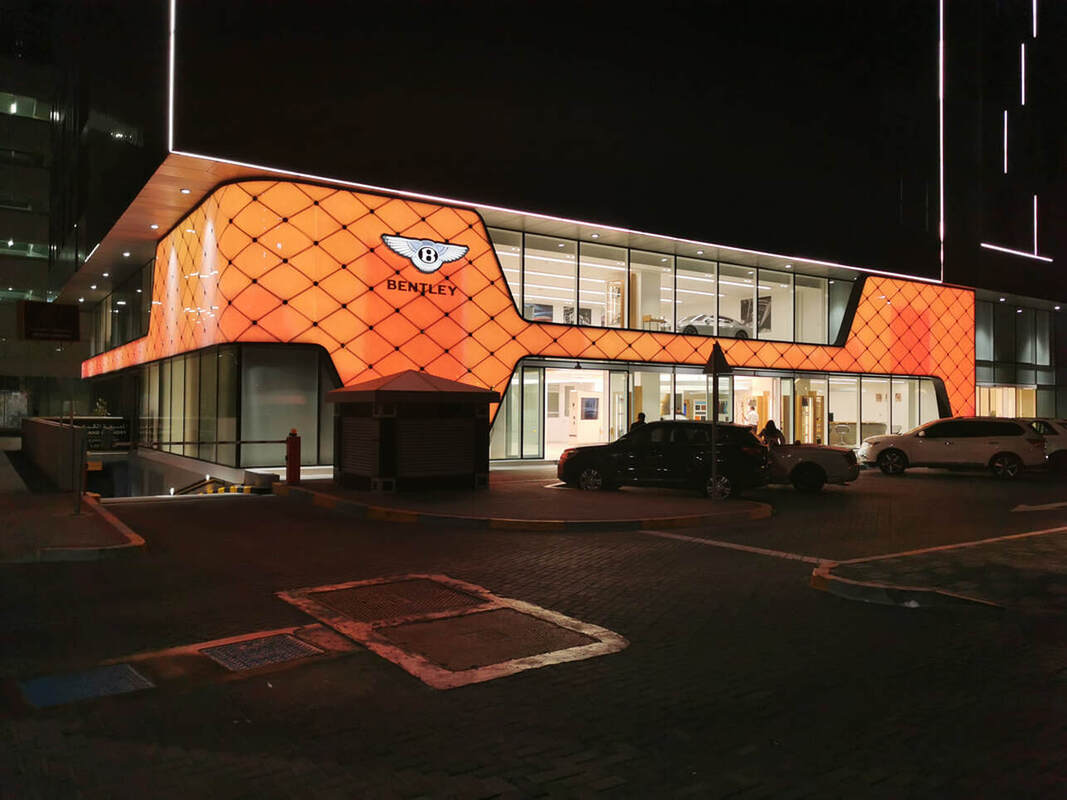

Transparent flexible media mesh facade is a new generation media communication platform for architectures.Transparent media facade has been increasingly used to turn the building facades into high-class venues for digital media presentations. These low-resolution pixel media mesh fuses light and media, allowing designers and architects to make digitally interactive architectures that create a media communication platform for these buildings to tell stories. It helps shopping malls, stadiums, airport buildings, skyscrapers, and landmarking buildings get excitements, and bring interest and a new perception to the pedestrians.



Features:


  • Weight less than 9kg/m²
  • Flexible for any shape or size
  • Fireproof Materials
  • Transparency rate 45% -80%
  • Up to 10,000nits
  • IP66


Applications
Parameter Table

RME Specifications

P31.25

P37.5

P40

P50

P62.5

Pixel Pitch (mm)

31.25

37.5

40

50

62.5

Pixel Configuration

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

Pixel density(m²)

1024

711

625

400

256

Max Module Dimensions(mm)

250x9,000

250x9,000

250x9,000

250x9,000

250x9,000

Max brightness(nits)

10,000

7,000

6,000

6,000

6,000

Transparency rate

42%

50%

54%

63%

70%

Max power consumption (w/m²)

460

320

282

180

116

Ave power consumption (w/m²)

154

107

94

60

39

IP Grade

IP66

IP66

IP66

IP66

IP66
