R-Flex Series

Flexible LED Display Module

Pixel Pitch: 0.9mm, 1.2mm, 1.5mm, 1.8mm, 2mm, 2.5mm, 3mm, 4mm.


Main Advantage: flexible for any shape or size, born for creative and irregular led display.

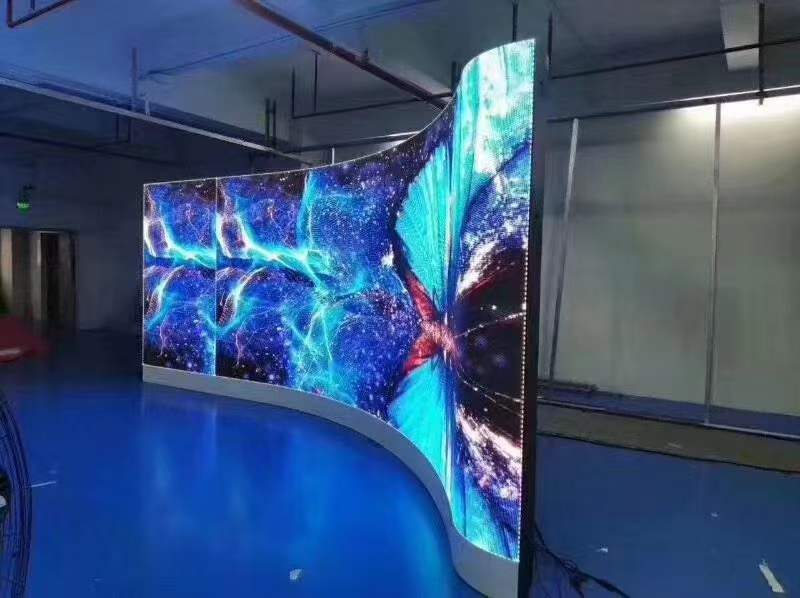

Nowadays, LED display users need not only common LED displays which can do advertising, but also need the LED displays to be decorative and attractive. Hence, it comes the creative LED displays.  To make inner arc LED screen, outer arc LED panel, wave LED panel and cylinder LED display, we develop this kind of indoor flexible LED display module.


Features:


  • Flexible rubber base and PCB, making really soft LED modules
  • Easy to make creative shapes, inner arc, outer arc, wave, cylindrical and others one can imagine.
  • Magnetic front service, quick installation and maintenance.
  • Strong magnets, modules are never loose and never fall.
  • High compatibility, can work with almost all control system.
  • High cost-effective, can build creative LED displays with affordable cost.


Applications
Parameter Table

R-Poster Specifications

P1.8

P2

P2.5

P3

P4

Pixel Pitch (mm)

1.875

2.0

2.5

3mm

4mm

Pixel Configuration

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

Module Size(mm)

240x120

240x120

240x120

240x120

240x120

Module Resolution

128x64

160x80

96x48

80x40

60x30

Refresh Rate(Hz)

3840

3840

3840

3840

3840

Brightness(nits)

600-800

600-800

600-800

600-800

600-800
