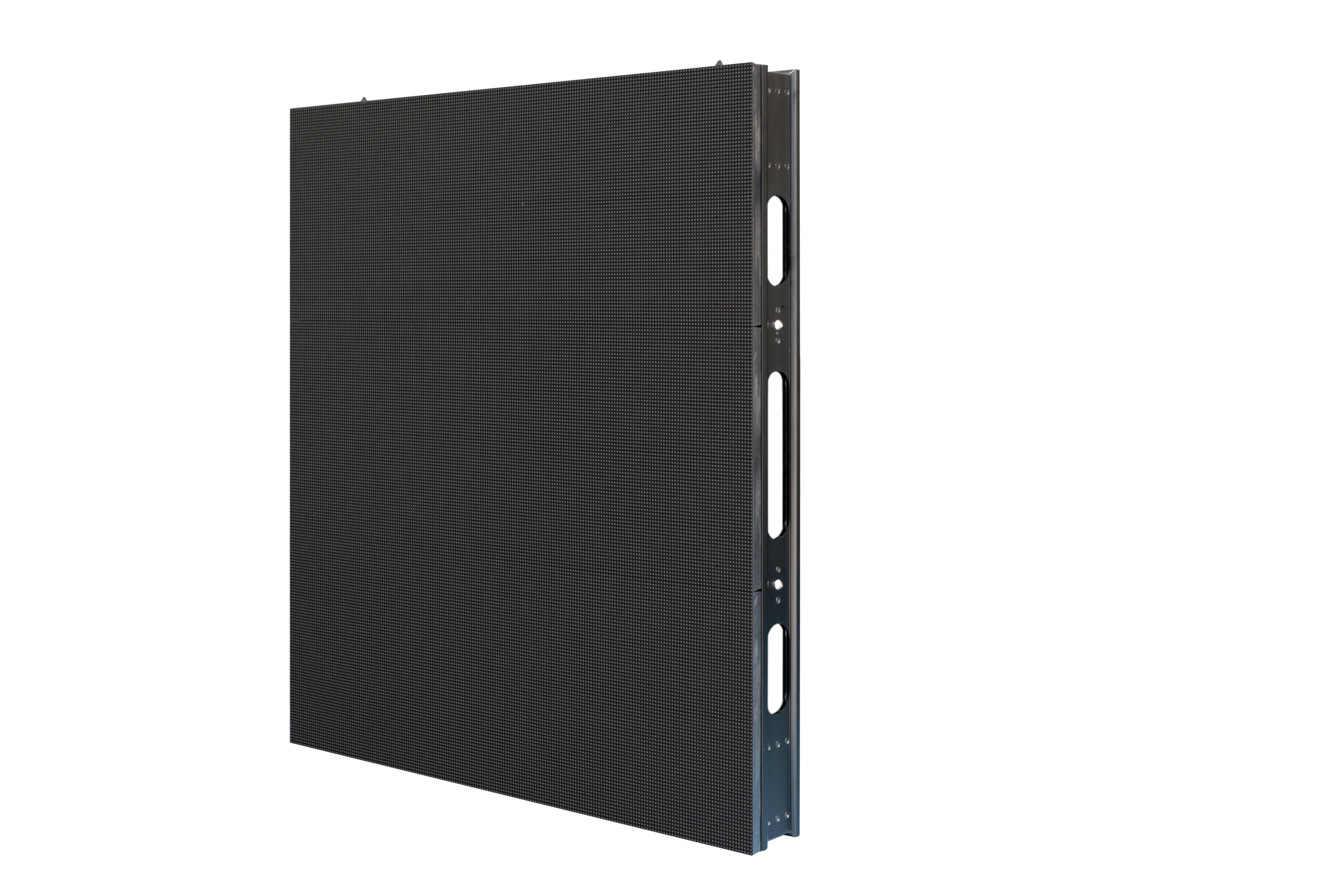

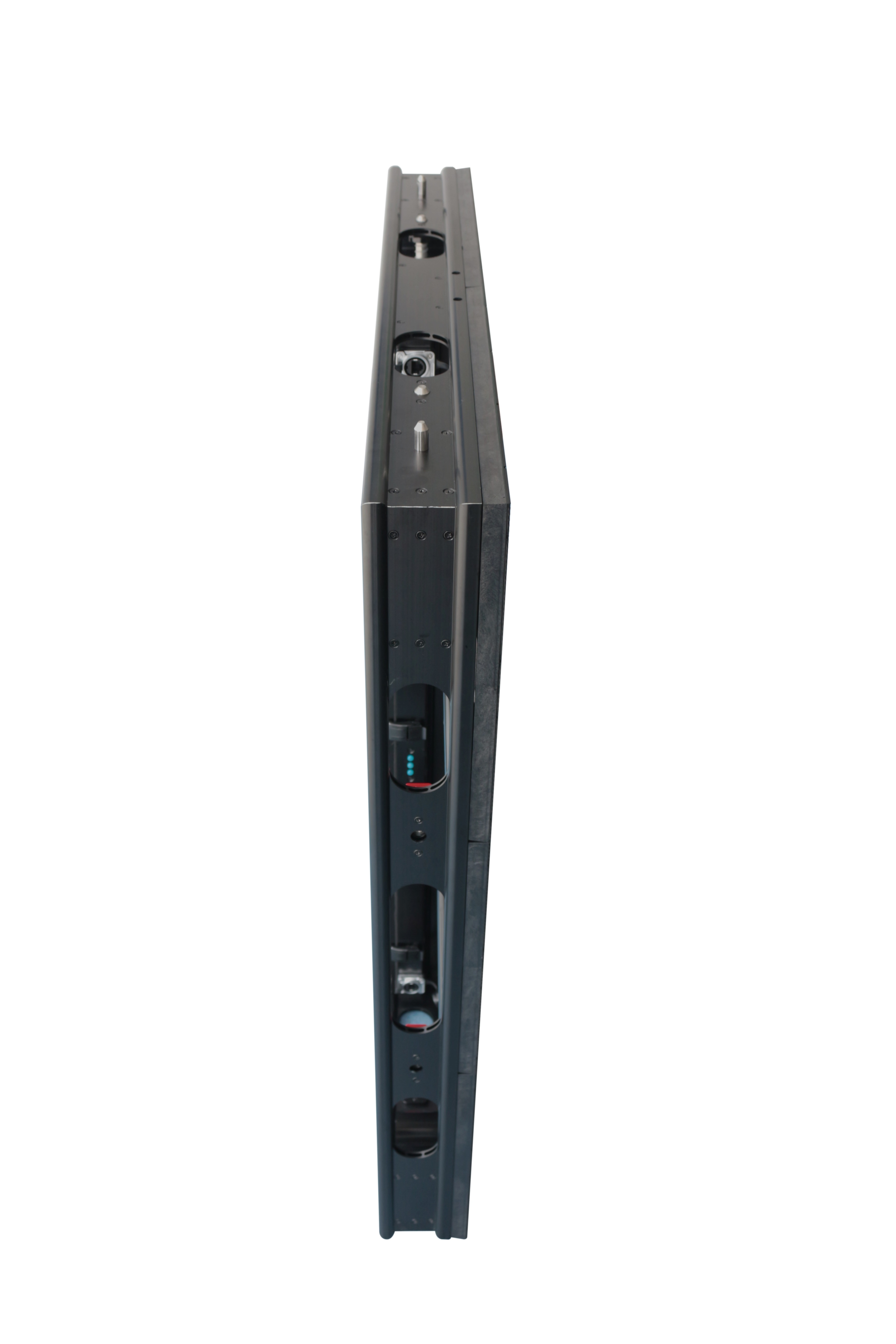

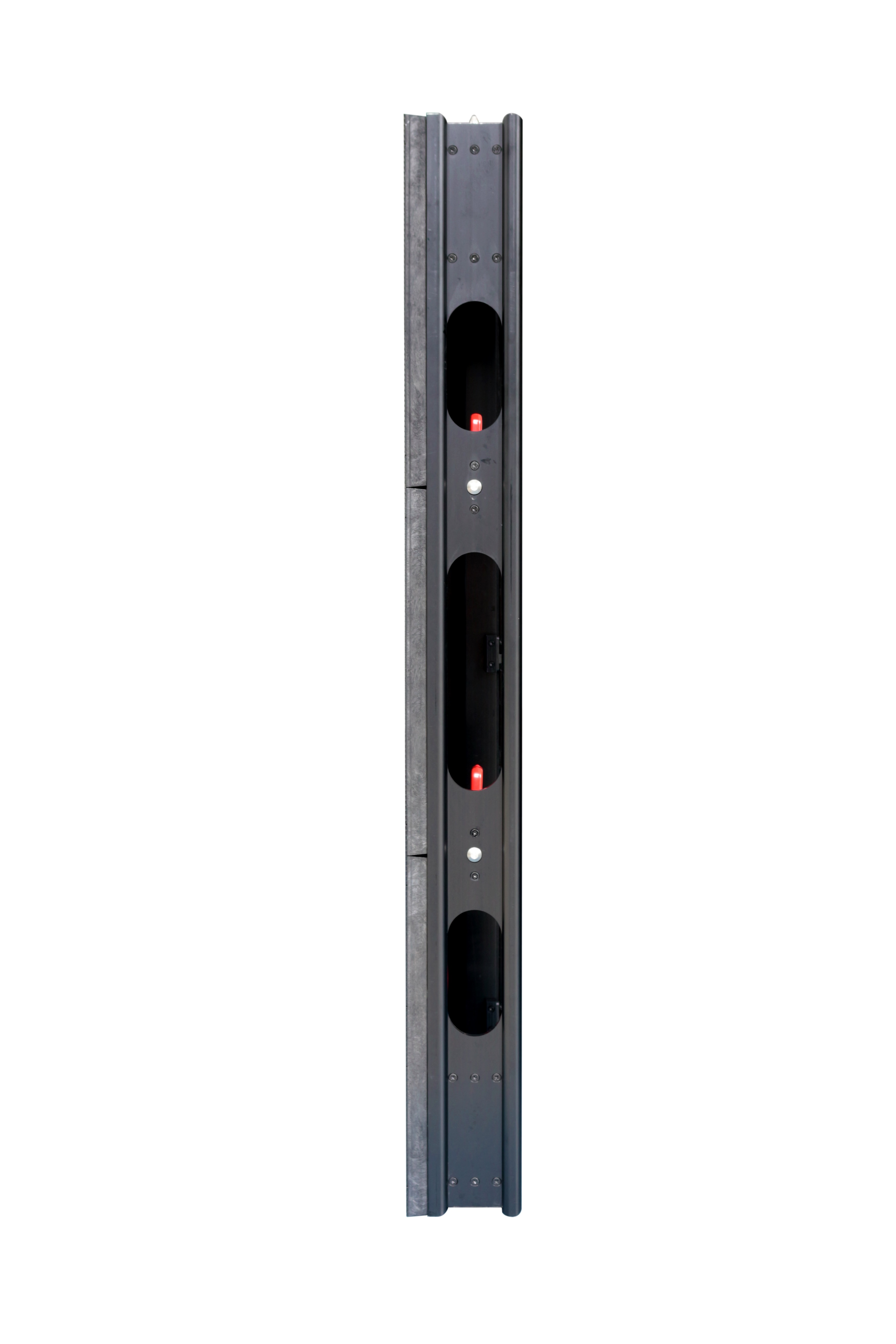

ROS Series

For 16:9 Outdoor Fixed Installation

Pixel Pitch: 4.16mm, 5mm, 6.25mm, 8.33mm, 10mm


LED display for outdoor fixed installation are mostly used for outdoor advertising with various of animation to attract audience. ROS series is one of the best choice for outdoor advertising, which provides availability for led screen as large as over 1,000 sqm, meanwhile it allows both front and rear maintenance to support easy installation and fast maintenance. Cabinet dimensions of 800*900mm  keeps advantage to make a led screen in golden ratio of 16:9.


Features:

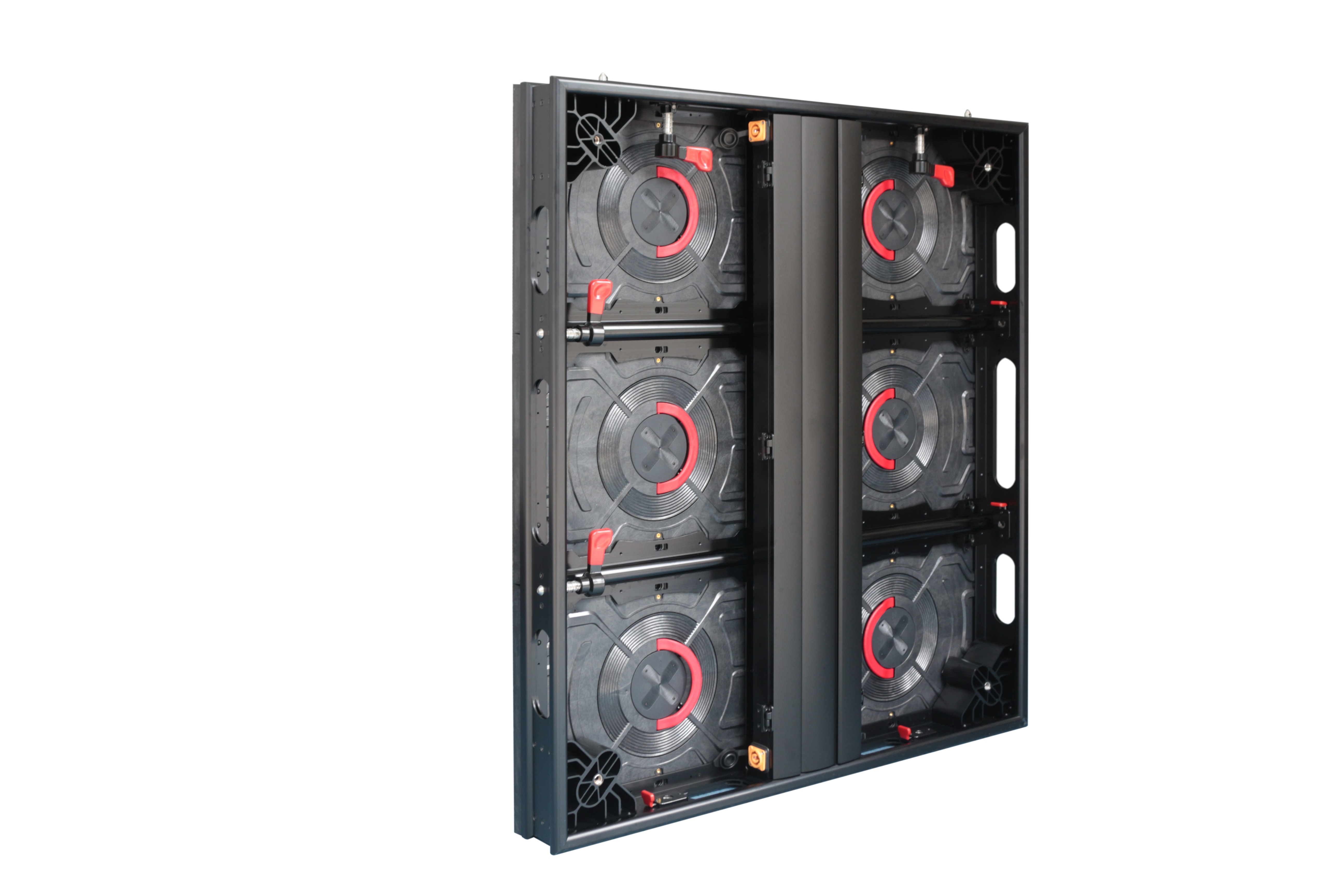

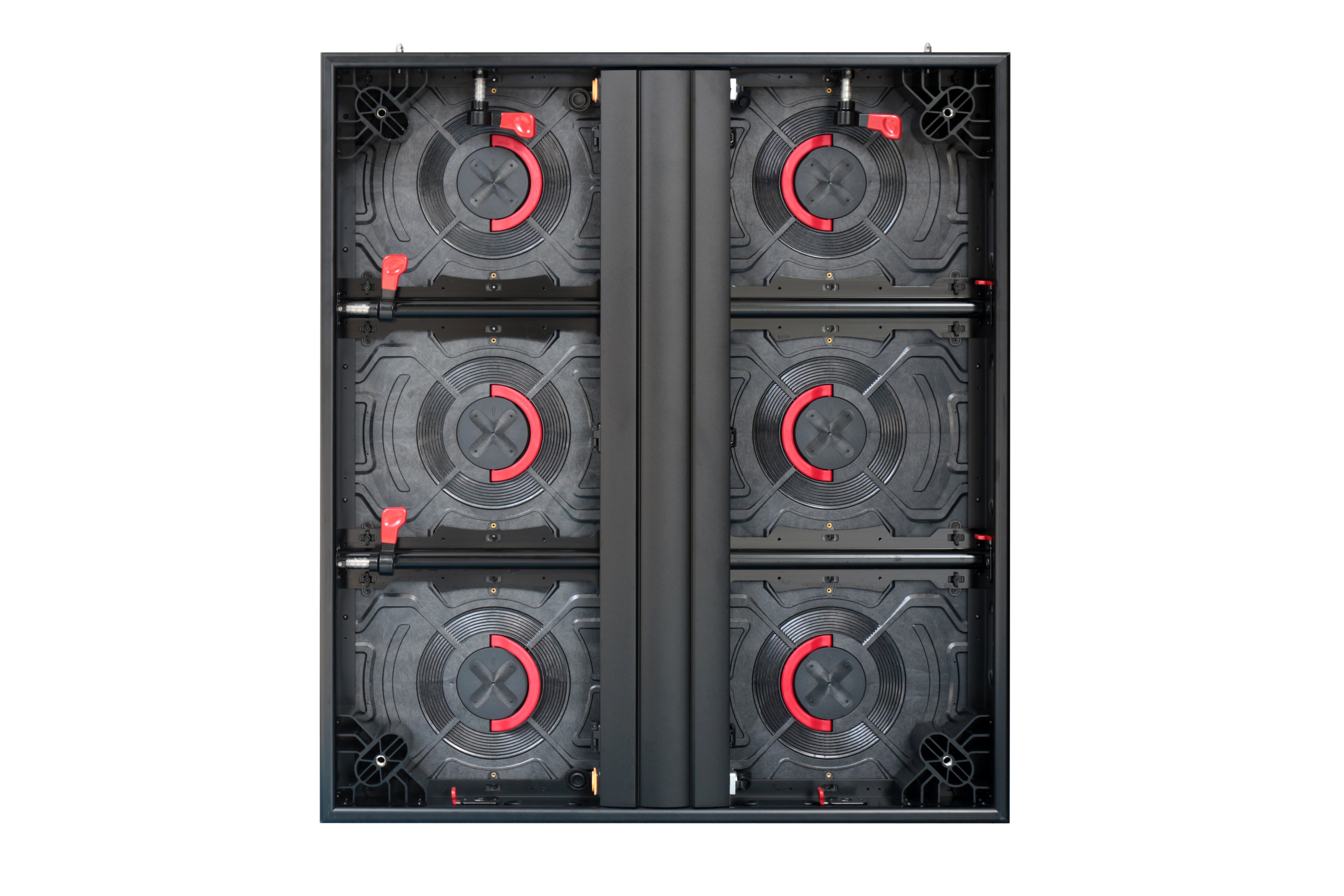

  1. Both front and rear access
  2. 10,000 nits available
  3. Easy installation

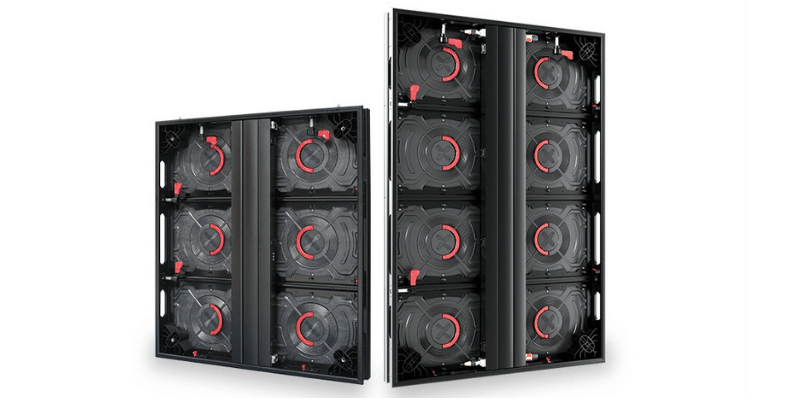

  4. Cabinet size 800/1600*900/1200mm
  5. Light weight <23kg per cabinet
  6. Energy saving
  7. Optional for 90° corner/seamless corner installation

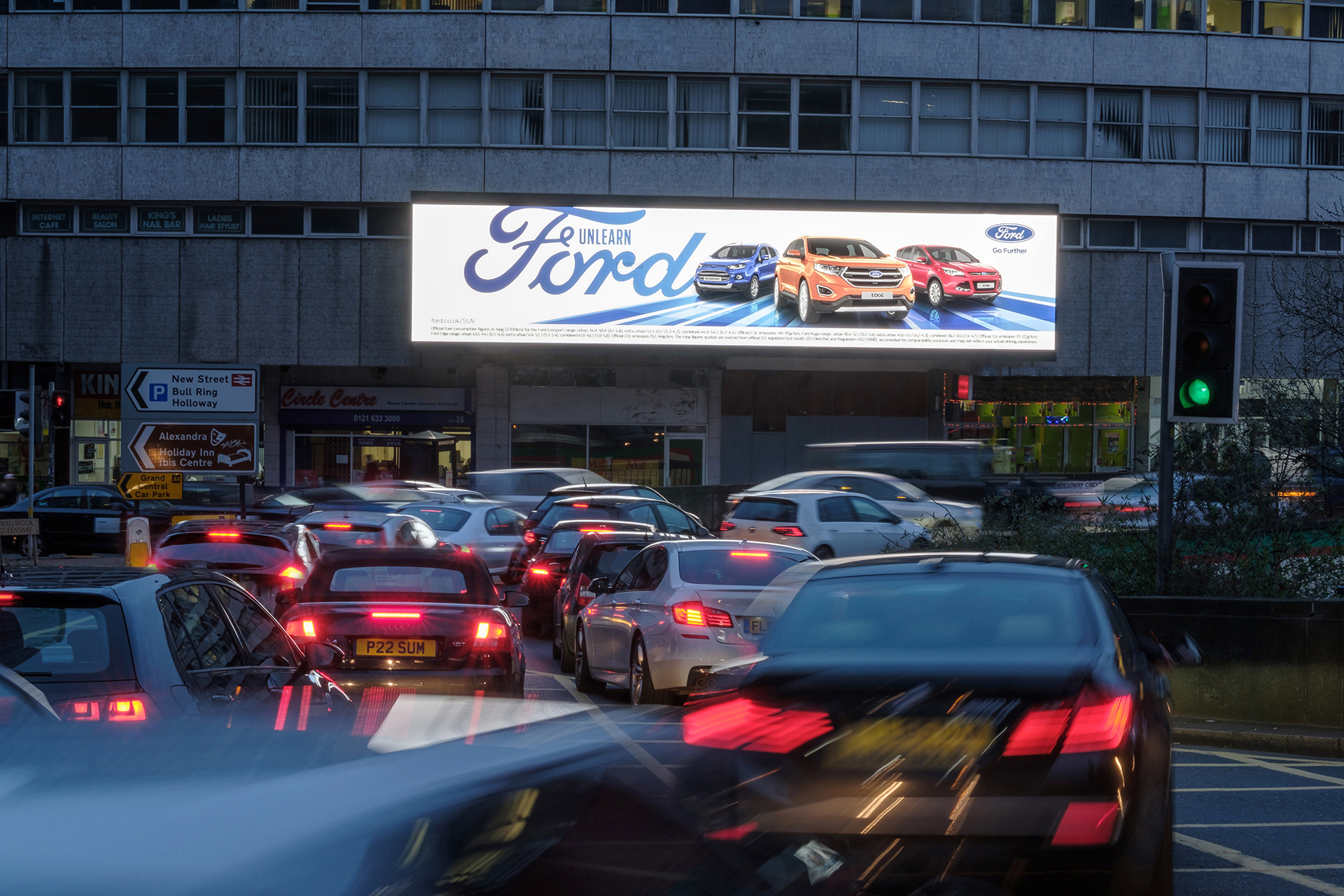

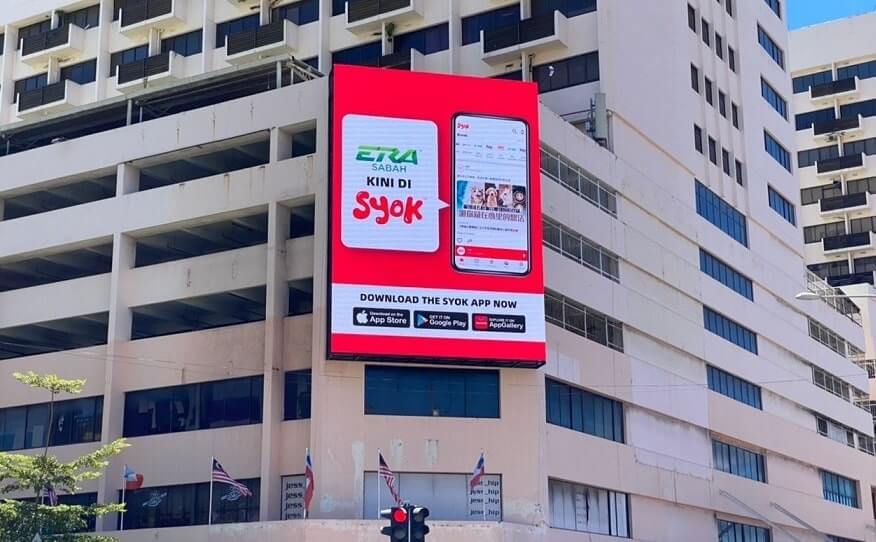

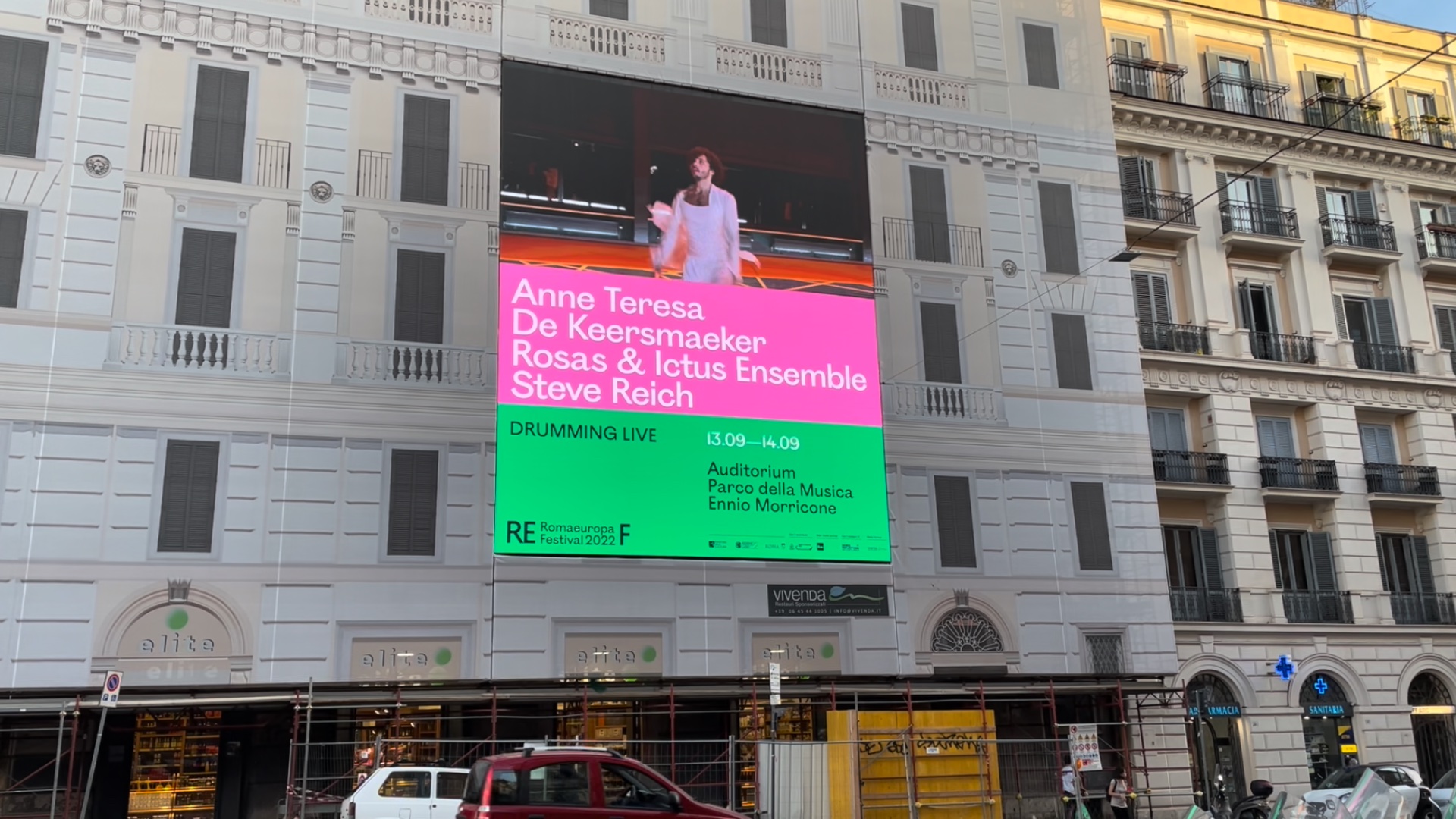

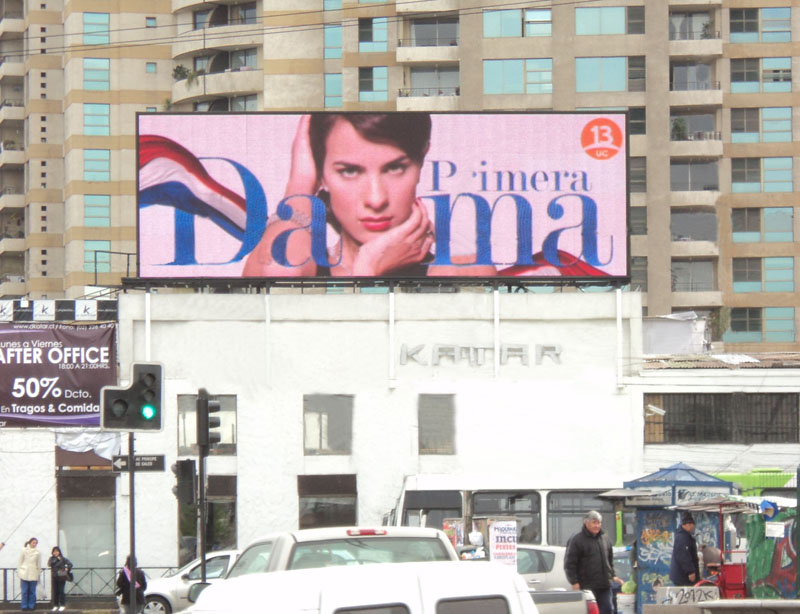

Applications
Parameter Table

ROS Specifications

P4

P5

P6

P8

P10

Pixel Pitch (mm)

4.16

5

6.25

8.33

10

Pixel Configuration

1R1G1B

1R1G1B

1R1G1B

1R1G1B


Pixel density

57600

40000

35600

14400

10000

Module Dimensions(mm)

400x300

400x300

400x300

400x300

400x300

Module Resolution

192x216

160x180

128x144

96x108

80x90

Cabinet Dimensions(mm)

800x900/1200

800x900/1200

800x900/1200

800x900/1200

800x900/1200

Cabinet weight (kg/pc)

23

23

23

23

23

Brightness(nits)

3,500-10,000

3,500-10,000

3,500-10,000

3,500-10,000

3,500-10,000

IP Degree

IP65

IP65

IP65

IP65

IP65
