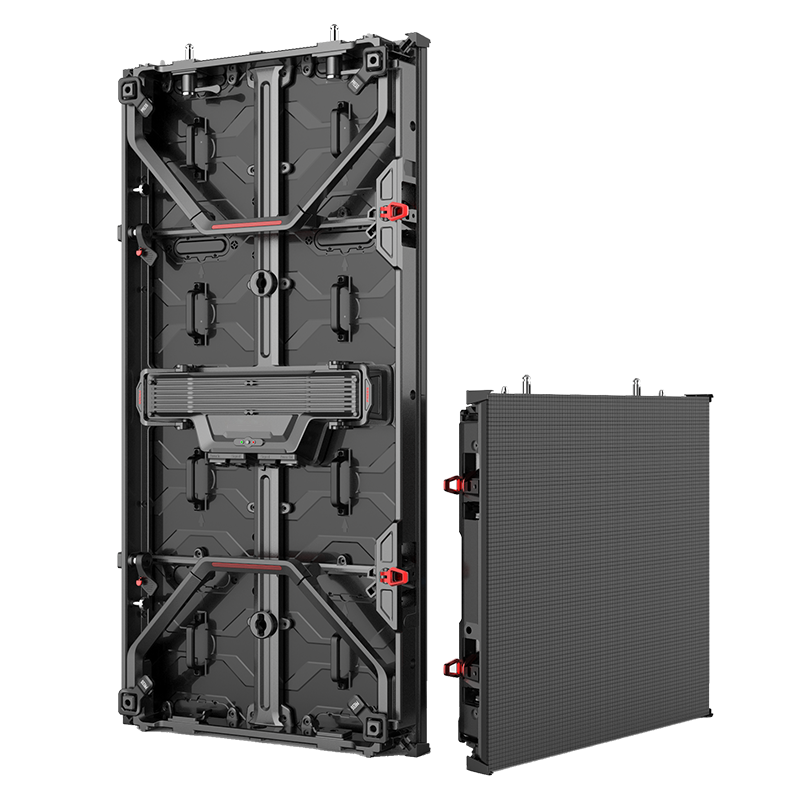

RTD Series

Touring System for Stage Rental LED Display

Pixel Pitch: Indoor 1.9mm, 2.6mm, 2.9mm, 3.91mm, 4.81mm

                 Outdoor 2.6mm, 2.9mm, 3.91mm, 4.81mm


Main Feature: Stronger cabinet frame, portable with touring system, both front and rear access, wide curve angle.


RTD series rental LED display is a design born for stage and events planning, the applied functional design including strong cabinet frame, high-end corner protection etc. make it available for multiple kinds of installation like hanging, stacking, or even wall-mounted. Moreover, you can move up to 24pcs 500x1000mm cabinets easily at one time with our customized dolly system.


Features:

1. available for 500x500mm and 500x1000mm cabinet

2. touring system for easy move per time of max 24 pcs cabinets

3. both front and rear service

4. automatic corner protection design

5. support XR/VR studios


Applications
Parameter Table


RTD Indoor Specifications

P1.9

P2.6

P2.9

P3.9

P4.8

Pixel Pitch (mm)

1.95

2.604

2.97

3.91

4.81

Pixel Configuration

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

Pixel density(m²)

262,144

147,456

112,896

65,536

43,264

Module Dimensions(mm)

250x250

250x250

250x250

250x250

250x250

Module Resolution

128x128

96x96

84x84

64x64

52x52

Cabinet Dimensions(mm)

500x500/500x1000

Cabinet weight (kg/pc)

8.5kg(500x500mm), 13.5kg(500x1000mm)

Brightness(nits)

800 - 1000

IP Grade

IP21


RTD Indoor Specifications

P2.6

P2.9

P3.9

P4.8

Pixel Pitch (mm)

2.604

2.97

3.91

4.81

Pixel Configuration

1R1G1B

1R1G1B

1R1G1B

1R1G1B

Pixel density(m²)

147,456

112,896

65,536

43,264

Module Dimensions(mm)

250x250

250x250

250x250

250x250

Module Resolution

96x96

84x84

64x64

52x52

Cabinet Dimensions(mm)

500x500/500x1000

Cabinet weight (kg/pc)

9kg(500x500mm), 14kg(500x1000mm)

Brightness(nits)

4500 - 5000

IP Grade

IP65
